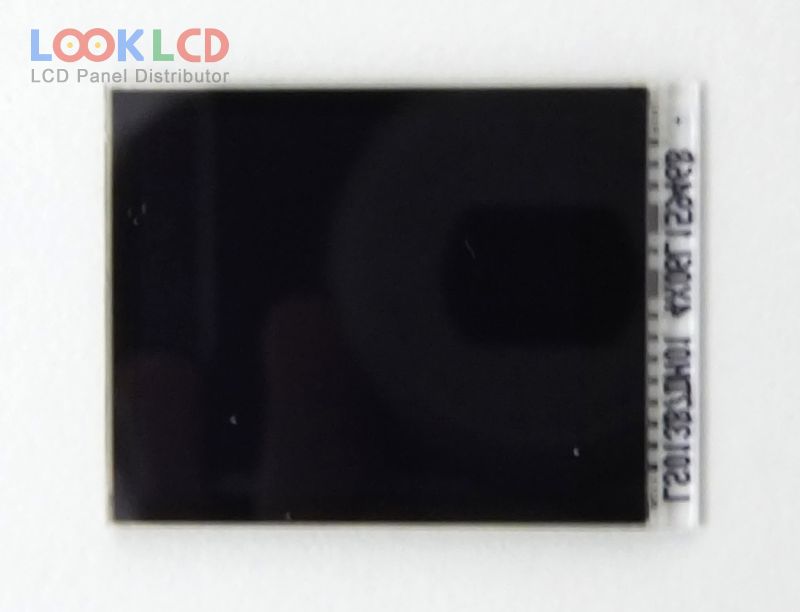

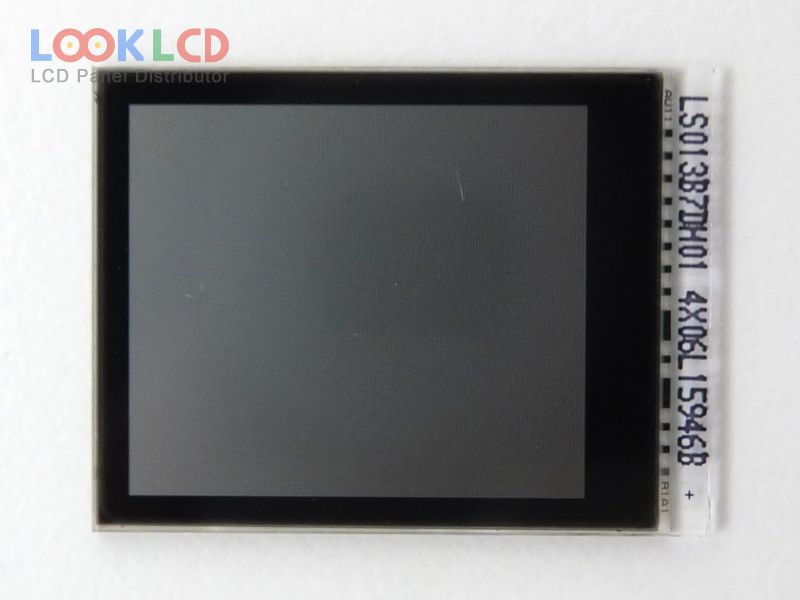

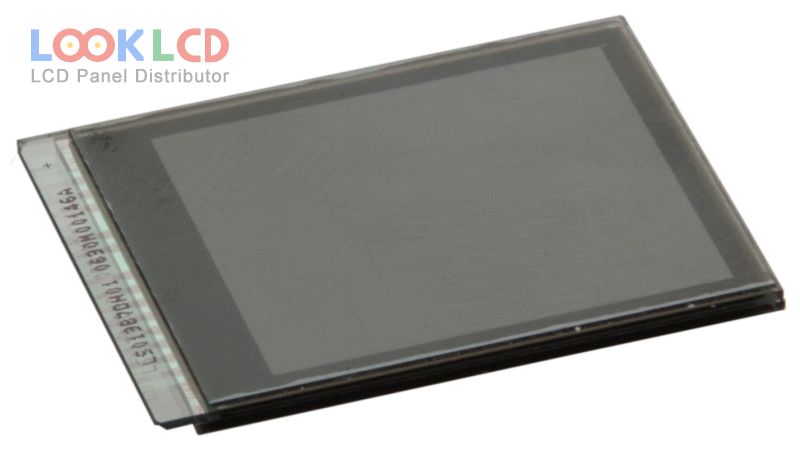

| PartNumber | LS013B7DH01 |
| Značka | SHARP |
| Velikost | 1.26 |
| aplikace | EPT |
| Rozlišení | 144×168 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | Monochrome |
| Podsvícení | No B/L |
| Rozhraní | SPI |
| značka panelu | SHARP |
| panelový model | LS013B7DH01 |
| typ panelu | CG-Silicon , LCM |
| velikost panelu | 1.26 inch |
| rozlišení | 144×168 |
| zobrazovací mód | Transflective |
| aktivní oblast | 20.88×24.36 mm |
| obrys | 24.88×33×1.75 mm |
| povrch | Hard coating (3H) |
| jas | |
| kontrastní poměr | 20:1 (Typ.)(Reflective) |
| zobrazit barvy | Monochrome (1-bit) |
| Doba odezvy | 10/20 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/60/60 (Typ.)(CR≥2)(L/R/U/D) |
| typ lampy | No B/L |
| signálové rozhraní | SPI, 14 pins |
| vstupní napětí | 5.0/5.0V (Typ.)(VDD/VDDA) |
| aplikace | EPT |
