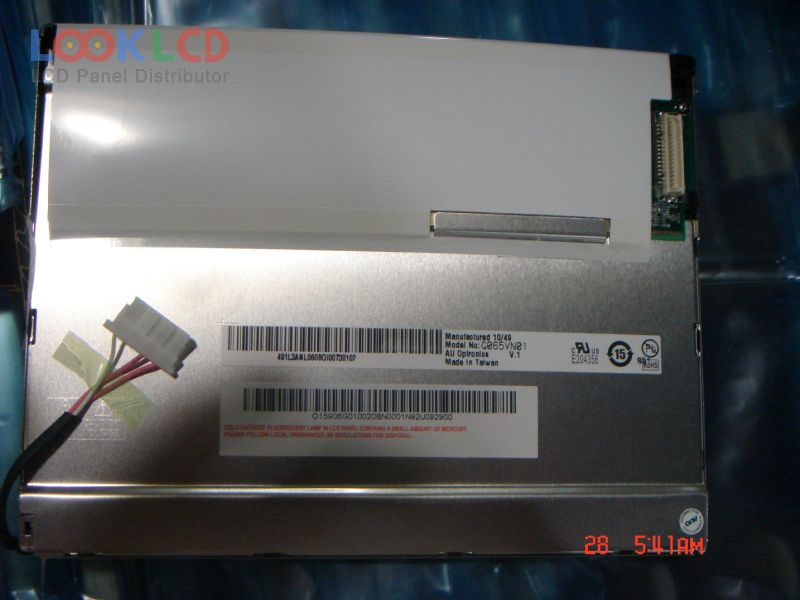

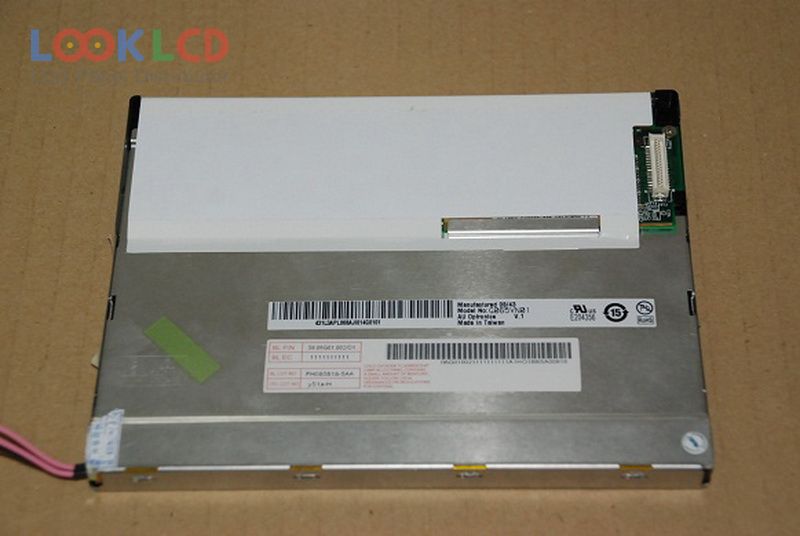

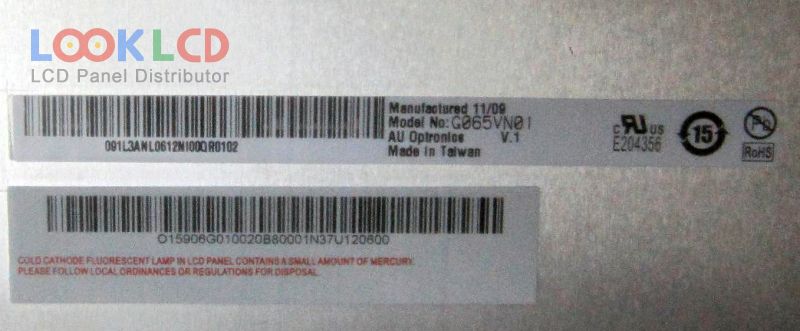

| PartNumber | G065VN01 V1 |
| Značka | AUO |
| Velikost | 6.5 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 500 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | G065VN01 V1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.5 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 132.48×99.36 mm |
| obrys | 153×118×11.2 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193155% |
| Doba odezvy | 15/10 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 31 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| aplikace | IA |
| C065GW03 V0 | AUO | 6.5 | 400×240 |
| G065VN01 V0 | AUO | 6.5 | 640×480 |
| G065VN01 V1 | AUO | 6.5 | 640×480 |
| G065VN01 V2 | AUO | 6.5 | 640×480 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| L5F30947T0A | Epson | 6.5 | 800×480 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| NL10276BC13-01C | NLT | 6.5 | 1024×768 |
| NL6448BC20-20 | NLT | 6.5 | 640×480 |
| AM480272H3TMQW-TW2H | AMPIRE | 4.3 | 480×272 |
| EL640.480-AAA | PLANAR | 10.4 | 640×480 |
| F-51430NFU-FW-AA | Kyocera | 9.4 | 640×480 |
| G121SN01 V3 | AUO | 12.1 | 800×600 |
| G133I1-L02 | Innolux | 13.3 | 1280×800 |
| LTM12C289 | TOSHIBA | 12.1 | 800×600 |
| NL8048BC24-09D | NLT | 9.0 | 800×480 |
| NL8060BC31-47D | NLT | 12.1 | 800×600 |
| PD064VXB | E Ink | 6.4 | 640×480 |
| T78AAVGTF0 | Other | 5.7 | 320×240 |
