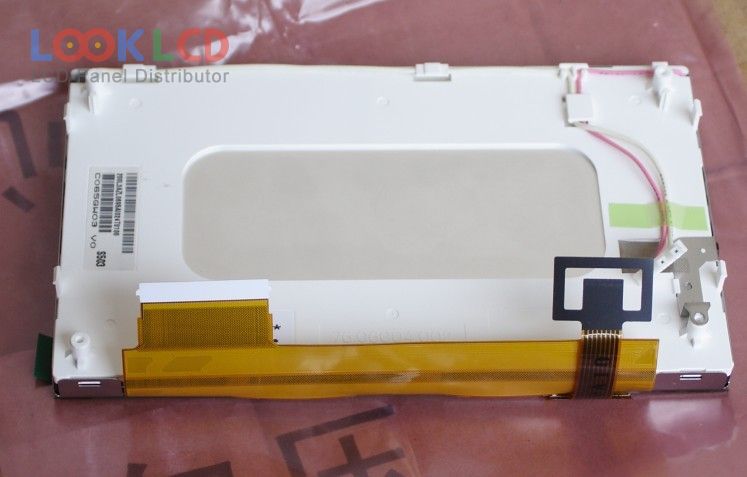

| PartNumber | C065GW03 V0 |
| Značka | AUO |
| Velikost | 6.5 |
| aplikace | CNS |
| Rozlišení | 400×240 |
| Složení | LCM |
| Jas | 450 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | C065GW03 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.5 inch |
| rozlišení | 400(RGB)×240 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 143.4×79.326 mm |
| obrys | 155×90.83 mm |
| povrch | Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 15/20 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 55 pins |
| vstupní napětí | 3.3/9.8/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | CNS |
