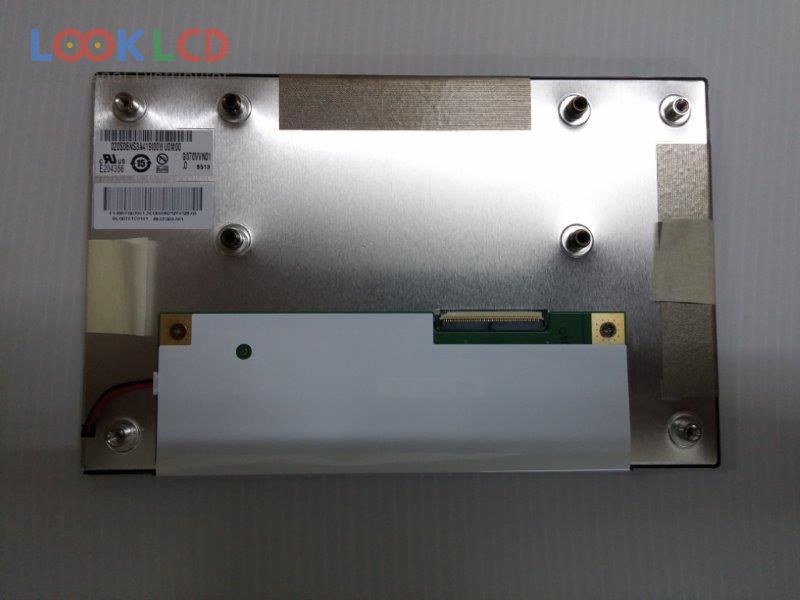

| PartNumber | G070VVN01.0 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | IA |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 450 |
| CR | 1500:1 |
| Barvy | 262K/16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | G070VVN01.0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | AMVA, Normally Black, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 164.55×104.71×11.8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 1500:1 (Typ.) |
| zobrazit barvy | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Doba odezvy | 10/25 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S2PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
