| PartNumber | G101STN01.2 |
| Značka | AUO |
| Velikost | 10.1 |
| aplikace | IA |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | G101STN01.2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 222.72×125.28 mm |
| obrys | 235×143×5.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193145% |
| Doba odezvy | 7/9 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDWithout Driver |

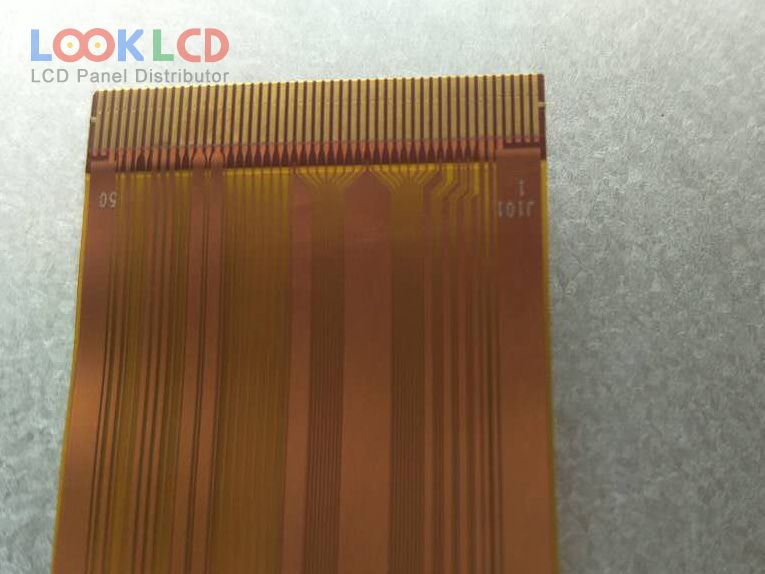

| signálové rozhraní | LVDS (1 ch, 6/8-bit), 50 pins |
| vstupní napětí | 3.3/10.0/18.0/-8.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | IA |
| A101VW01 V0 | AUO | 10.1 | 800×480 |
| B101AW06 V1 HW0A | AUO | 10.1 | 1024×600 |
| EJ101IA-02A | Innolux | 10.1 | 1280×800 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G101STN01.3 | AUO | 10.1 | 1024×600 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| YXD101301000-60 | SEBO | 10.1 | 1024×600 |
| AA104XG12 | Mitsubishi | 10.4 | 1024×768 |
| DLC0570BDG-3 | Other | 5.7 | 640×480 |
| LB104S04-TL02 | LG Display | 10.4 | 800×600 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LTM08C351 | TOSHIBA | 8.4 | 800×600 |
| M101GWN9 R0 | IVO | 10.1 | 1024×600 |
| NL10276AC20-03 | NLT | 10.4 | 1024×768 |
| NL6448BC33-64E | NLT | 10.4 | 640×480 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| TM104QDSG09 | Tianma | 10.4 | 640×480 |
