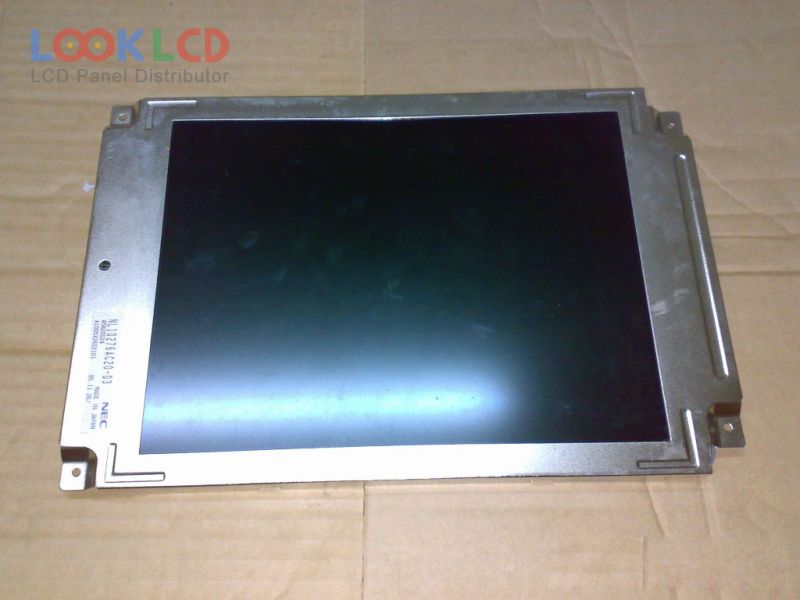

| PartNumber | NL10276AC20-03 |
| Značka | NLT |
| Velikost | 10.4 |
| aplikace | IA |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 85 |
| CR | 100:1 |
| Barvy | 4096 |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | NEC |
| panelový model | NL10276AC20-03 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 211.968×158.976 mm |
| obrys | 282×190×13 mm |
| povrch | |
| jas | 85 cd/m² (Typ.) |
| kontrastní poměr | 100:1 (Typ.) |
| zobrazit barvy | 4096 (4-bit), CIE193140% |
| Doba odezvy | 40 (Min.)(Tr+Td) |
| úhel pohledu | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLEmbedded (Inverter) |
| signálové rozhraní | TTL (1 ch, 4-bit), 65 pins |
| vstupní napětí | 5.0/12.0V (Typ.)(VCC/VDD) |
| aplikace | IA |
