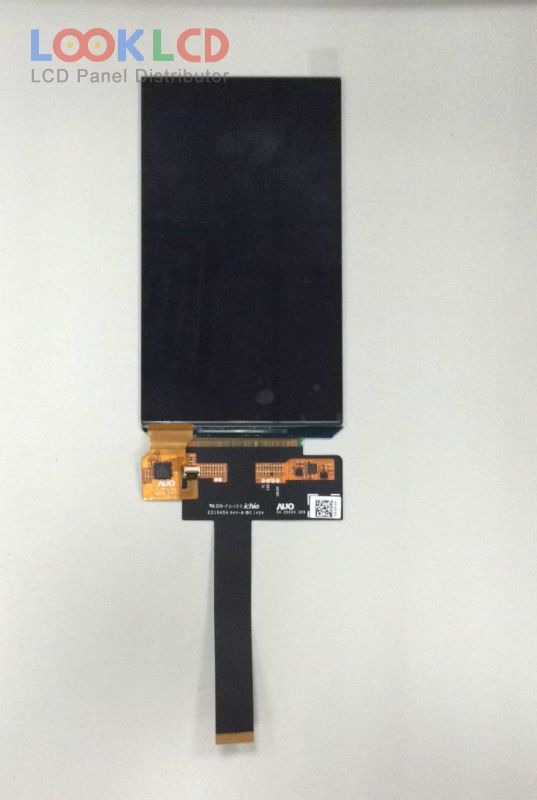

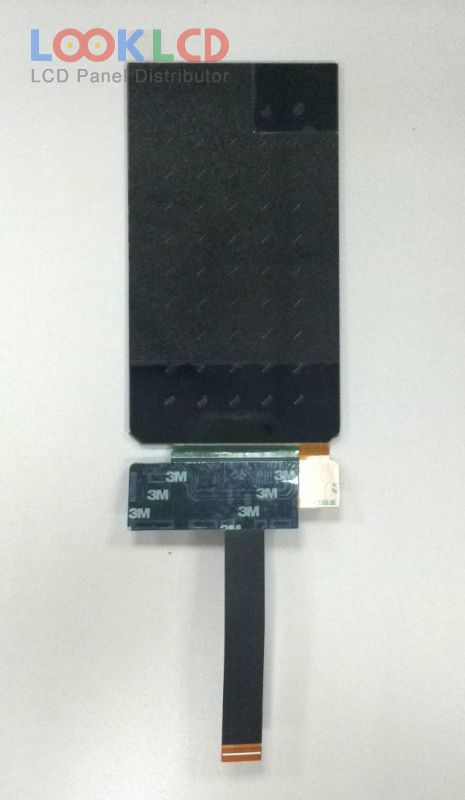

| PartNumber | H497TLB01 |
| Značka | AUO |
| Velikost | 5.0 |
| aplikace | MPH |
| Rozlišení | 720×1280 |
| Složení | OLED |
| Jas | 250 |
| CR | 10000:1 |
| Barvy | 16.7M |
| Podsvícení | self |
| Rozhraní | |
| značka panelu | AUO |
| panelový model | H497TLB01 |
| typ panelu | AM-OLED , OLED |
| velikost panelu | 5.0 inch |
| rozlišení | 720(RGB)×1280 , WXGA |
| aktivní oblast | 61.92×110.08 mm |
| obrys | 65.92×118.64×0.87 mm |
| povrch | |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 10000 : 1 (Min.) |
| zobrazit barvy | 16.7M (8-bit), CIE1931100% |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥200)(L/R/U/D) |
| frekvence | 60Hz |
| řidič ic | Suggest RM69052 |
| aplikace | MPH |
