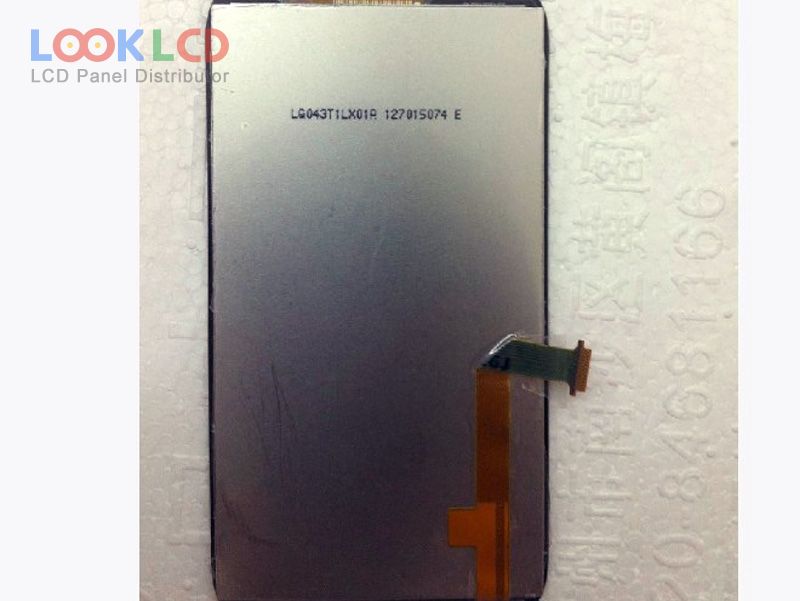

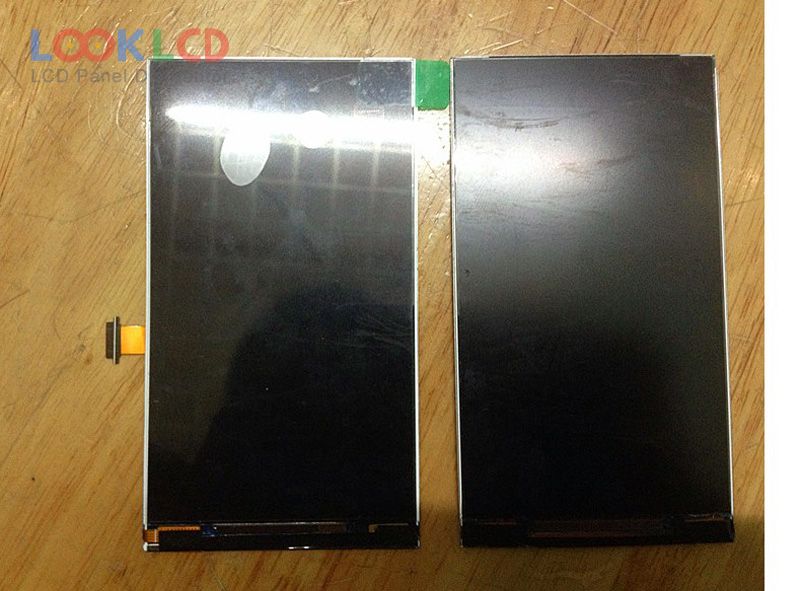

| PartNumber | LQ043T1LX01A |
| Značka | SHARP |
| Velikost | 4.3 |
| aplikace | MPH |
| Rozlišení | 540×960 |
| Složení | LCM |
| Jas | 500 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MDDI/MIPI |
| značka panelu | SHARP |
| panelový model | LQ043T1LX01A |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 540(RGB)×960 , qHD |
| zobrazovací mód | ASV, Normally Black, Transmissive |
| aktivní oblast | 53.46×95.04 mm |
| obrys | 58.54×105.7 mm |
| povrch | Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193170% |
| Doba odezvy | 35 (Max.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 10S1PWLEDWithout Driver |
| signálové rozhraní | MDDI/MIPI, 25 pins |
| vstupní napětí | 1.8/3.1V (Typ.)(IOVDD/AVDD) |
| aplikace | MPH |
