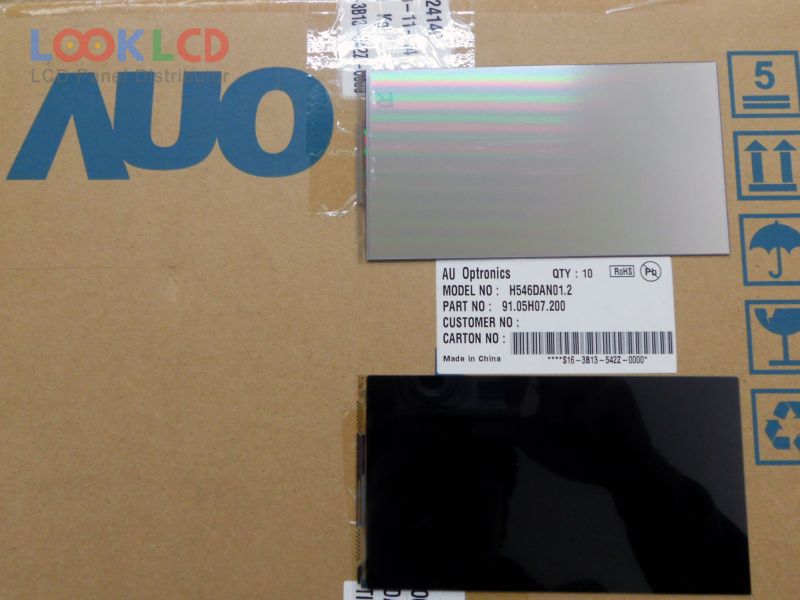

| PartNumber | H546DAN01.2 |
| Značka | AUO |
| Velikost | 5.5 |
| aplikace | MPH |
| Rozlišení | 1080×1920 |
| Složení | CELL |
| Jas | 0 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | |
| značka panelu | AUO |
| panelový model | H546DAN01.2 2 Compatible model |
| typ panelu | LTPS TFT-LCD , CELL |
| velikost panelu | 5.5 inch |
| rozlišení | 1080(RGB)×1920 , FHD |
| zobrazovací mód | AHVA, Normally Black, Transmissive |
| aktivní oblast | 68.04×120.96 mm |
| obrys | 70.44×127.61×0.636 mm |
| povrch | Hard coating |
| hloubka skla | 0.18+0.18 mm |
| propustnost | 4.2% (Typ.)(with APCF) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193170% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| řidič ic | COG Built-in NT35596 |
| vstupní napětí | 1.8/2.8V (Typ.)(VDDI/VCI) |
| aplikace | MPH |
