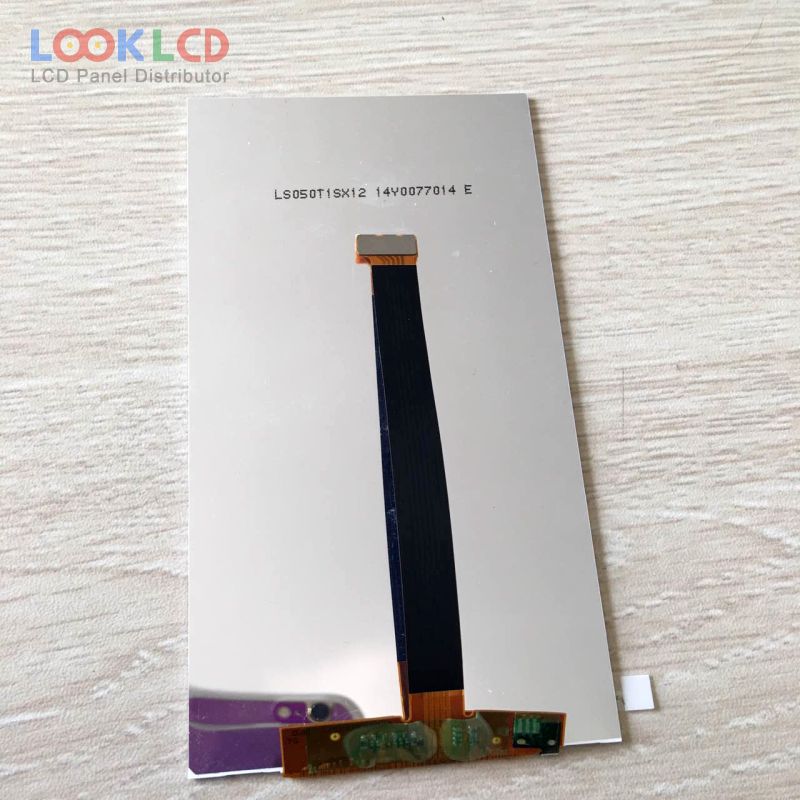

| PartNumber | LS050T1SX12(K) |
| Značka | SHARP |
| Velikost | 5.0 |
| aplikace | MPH |
| Rozlišení | 1080×1920 |
| Složení | LCM |
| Jas | 460 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | SHARP |
| panelový model | LS050T1SX12(K) |
| typ panelu | CG-Silicon , LCM |
| velikost panelu | 5.0 inch |
| rozlišení | 1080(RGB)×1920 , FHD |
| zobrazovací mód | New Mode2, Normally Black, Transmissive |
| aktivní oblast | 61.641×109.584 mm |
| obrys | 64.041×116.224×1.13 mm |
| povrch | Hard coating (3H) |
| jas | 460 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193195% |
| Doba odezvy | 35 (Max.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S2PWLEDWithout Driver |
| signálové rozhraní | MIPI (4 data lanes), 34 pins |
| vstupní napětí | 1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN) |
| aplikace | MPH |
| ACX450AKN-7 | JDI | 5.0 | 1080×1920 |
| AT050TN35 | Innolux | 5.0 | 480×272 |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| CLAF050LN41 TXX | CPT | 5.0 | 540×960 |
| H495TAN01.1 | AUO | 5.0 | 720×1280 |
| LS050T1SX01 | SHARP | 5.0 | 1080×1920 |
| LS050T1SX04 | SHARP | 5.0 | 1080×1920 |
| LS050T1SX06 | SHARP | 5.0 | 1080×1920 |
| LS050T1SX10 | SHARP | 5.0 | 1080×1920 |
| LS050T1SX12(K) | SHARP | 5.0 | 1080×1920 |
| BT055FWM-N00 | BOE | 5.5 | 480×854 |
| DX12D100VM0EAA | JDI | 4.7 | 720×1280 |
| H598QAN01.0 | AUO | 6.0 | 1440×2560 |
| HVA37WV1-D01 | HYDIS | 3.7 | 480×800 |
| LH470WX6-SD02 | LG Display | 4.7 | 750×1334 |
| LS030Y3DX01 | SHARP | 3.0 | 480×800 |
| PJ035MA-02A | Innolux | 3.5 | 320×480 |
| TFT2N0369-E | Other | 3.2 | 240×320 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
