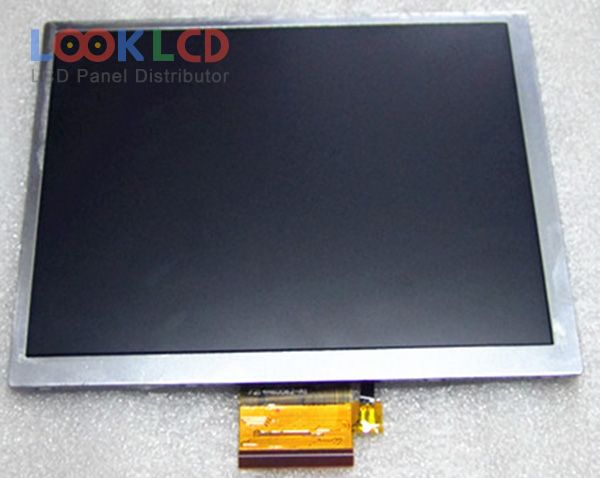

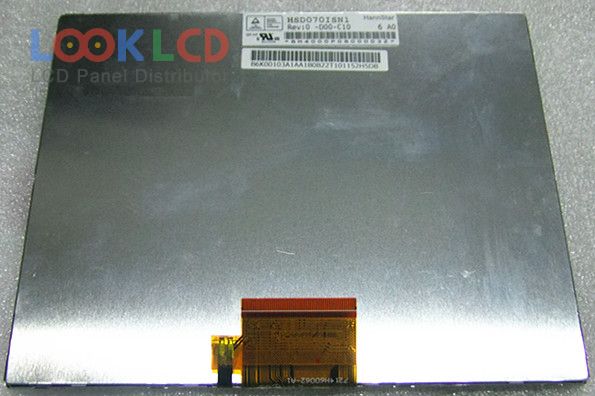

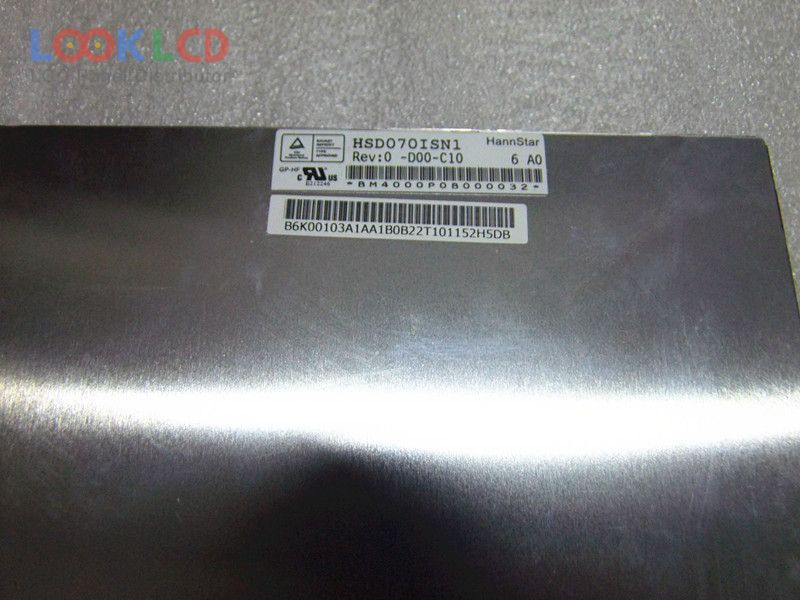

| PartNumber | HSD070ISN1-D00 |
| Značka | HannStar |
| Velikost | 7.0 |
| aplikace | DPF |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 350 |
| CR | 600:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | HannStar |
| panelový model | HSD070ISN1-D00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 141.6×106.2 mm |
| obrys | 156.4×122.25×4.4 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 2.4/5.6 (Typ.)(Tr/Td) |
| úhel pohledu | 60/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2S5PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 60 pins |
| vstupní napětí | 3.3/9.5/16.5/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | DPF |
