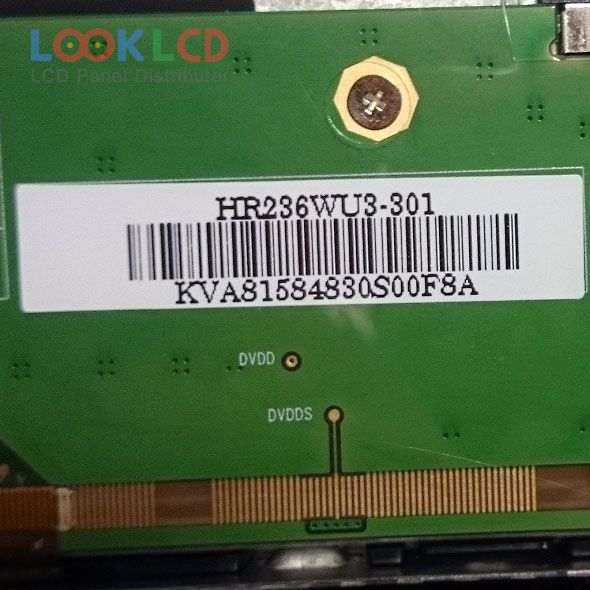

| PartNumber | HR236WU3-301 |
| Značka | BOE |
| Velikost | 23.6 |
| aplikace | DMPC |
| Rozlišení | 1920×1080 |
| Složení | CELL |
| Jas | 0 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | LVDS |
| značka panelu | BOE |
| panelový model | HR236WU3-301 |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 23.6 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | ADS, Normally Black, Transmissive |
| aktivní oblast | 521.28×293.22 mm |
| obrys | 535.9×307 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| hloubka skla | 0.50+0.50 mm |
| propustnost | 4.35% (Typ.)(with Polarizer) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC) |
| Doba odezvy | 14 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
