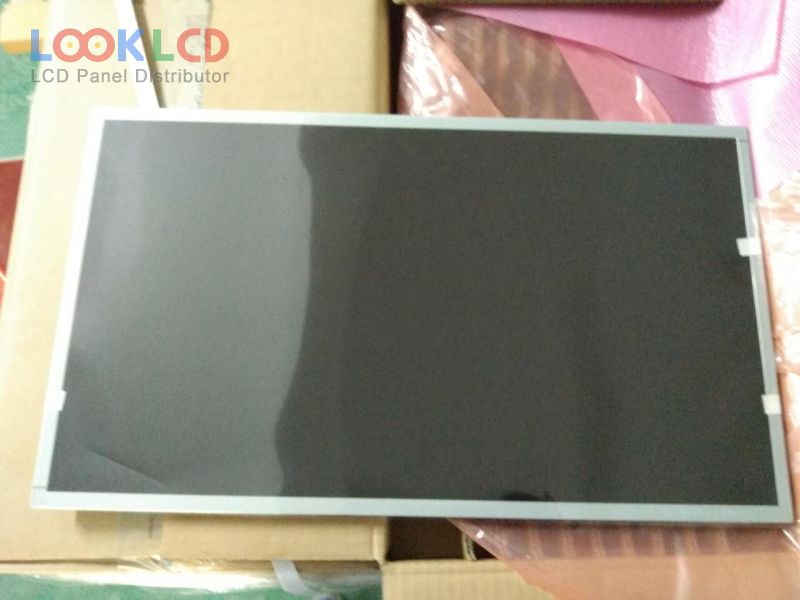

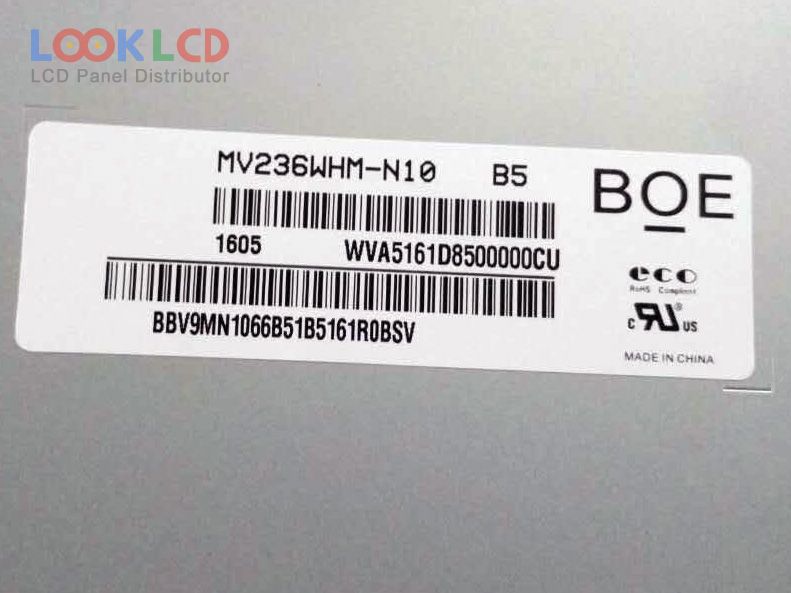

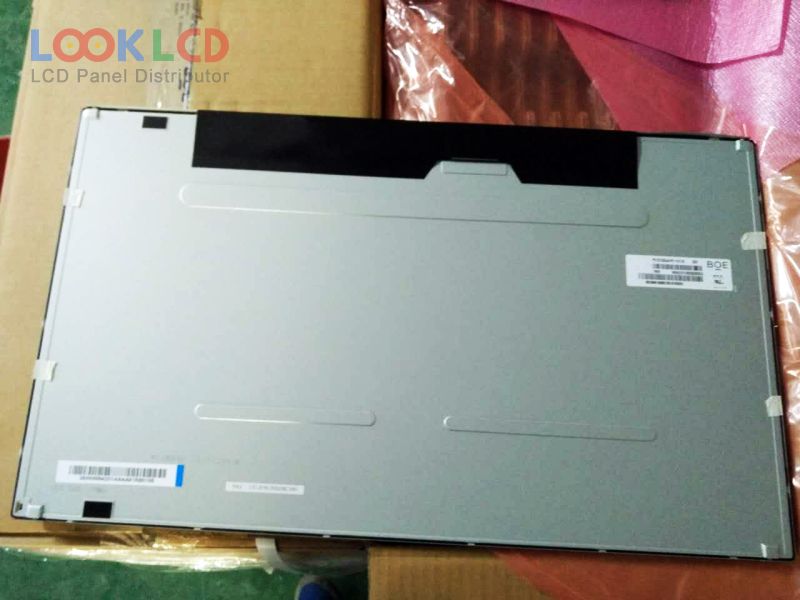

| PartNumber | MV236WHM-N10 |
| Značka | BOE |
| Velikost | 23.6 |
| aplikace | DMPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | BOE |
| panelový model | MV236WHM-N10 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 23.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | ADS, Normally Black, Transmissive |
| aktivní oblast | 521.471×293.184 mm |
| obrys | 544.8×320.5 mm |
| povrch | Antiglare (Haze 1%), Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193174% |
| Doba odezvy | 14 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 14S2PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | DMPC |
