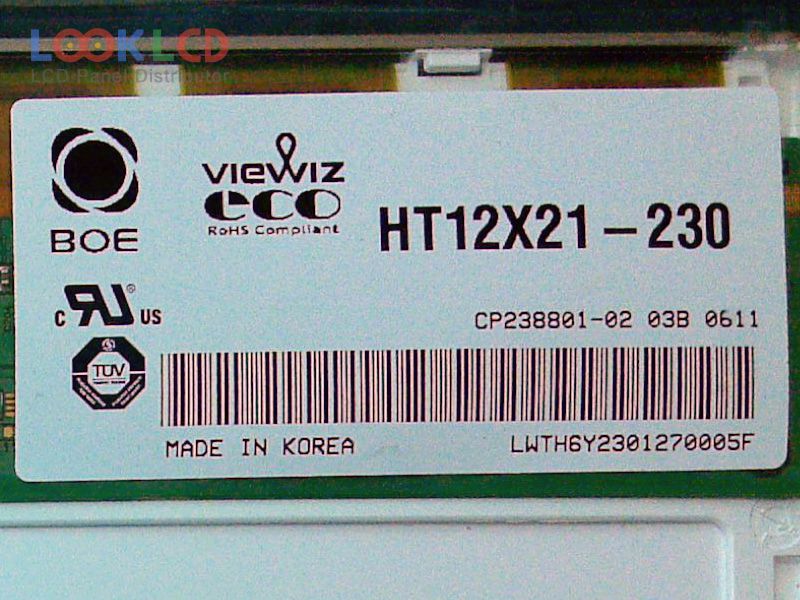

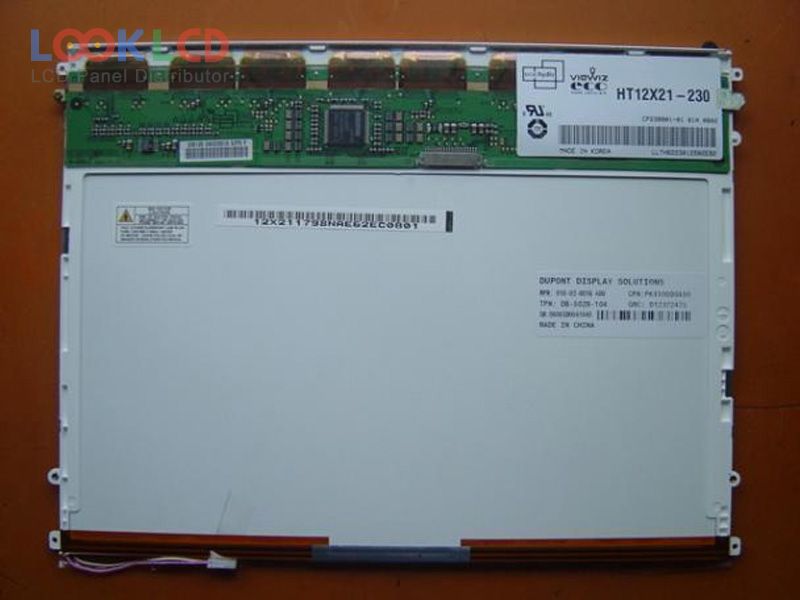

| PartNumber | HT12X21-230 |
| Značka | HYDIS |
| Velikost | 12.1 |
| aplikace | PAD |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 180 |
| CR | 450:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | BOE HYDIS |
| panelový model | HT12X21-230 2 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | AFFS, Normally Black, Transmissive |
| aktivní oblast | 245.76×184.32 mm |
| obrys | 270×199×7 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 180 cd/m² (Typ.) |
| kontrastní poměr | 450:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193140% |
| Doba odezvy | 40 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
