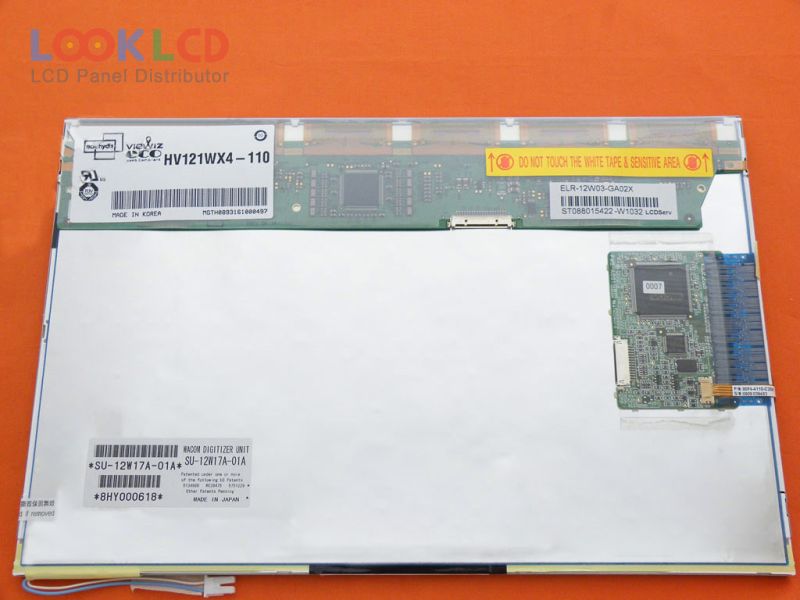

| PartNumber | HV121WX4-110 |
| Značka | HYDIS |
| Velikost | 12.1 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 200 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | HYDIS |
| panelový model | HV121WX4-110 2 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | AFFS, Normally Black, Transmissive |
| aktivní oblast | 261.12×163.2 mm |
| obrys | 275.8×178×6.7 mm |
| povrch | Antireflection |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 28 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
