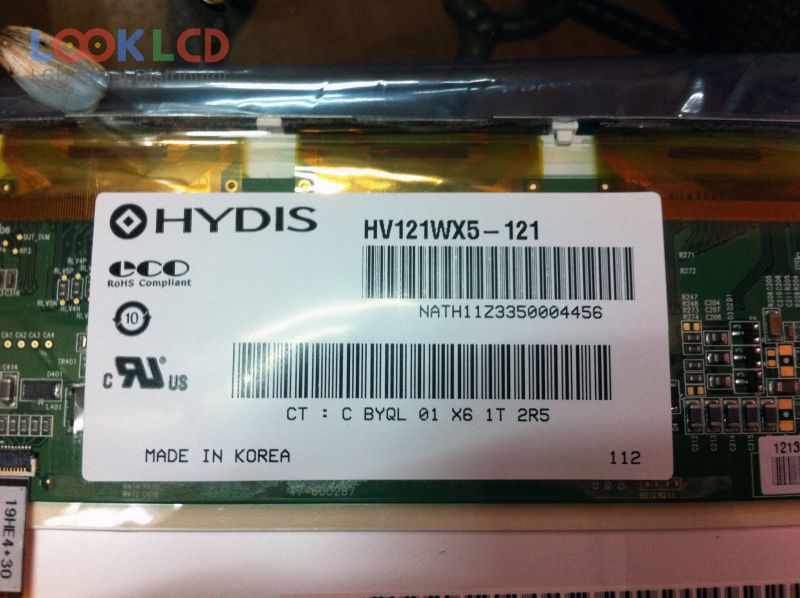

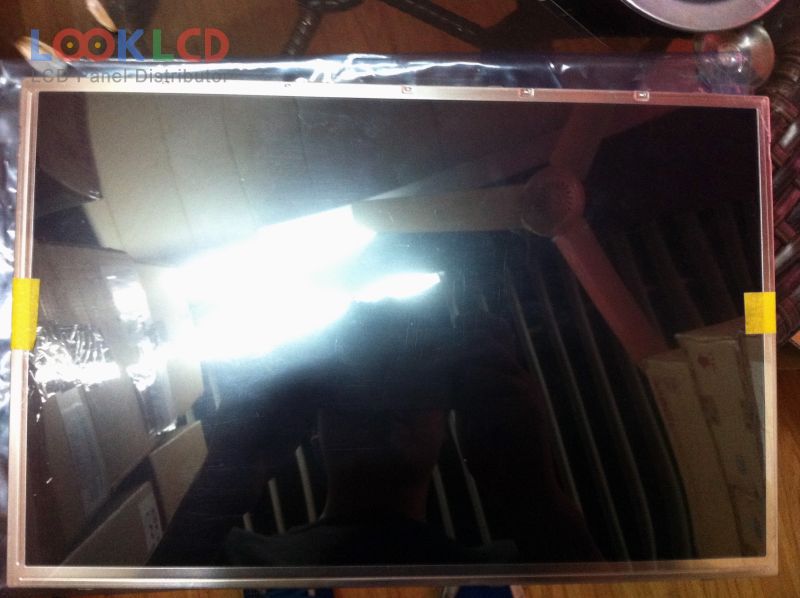

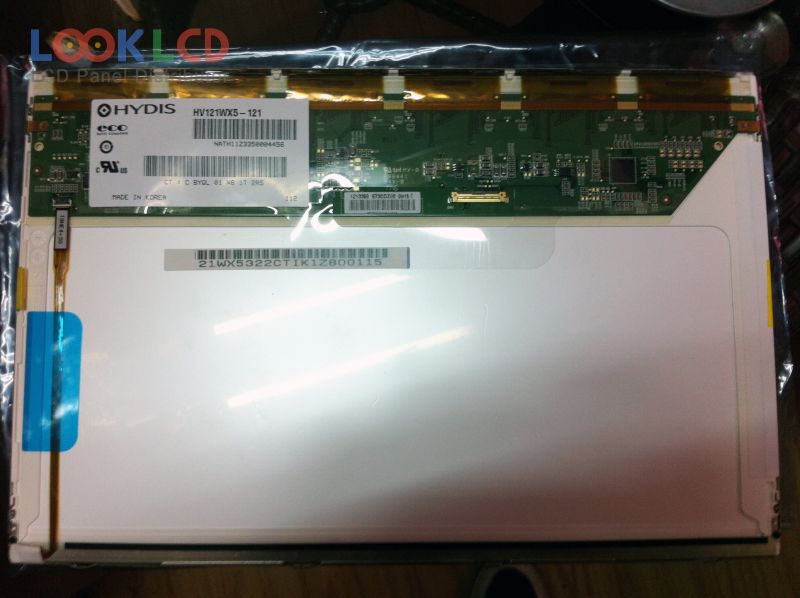

| PartNumber | HV121WX5-121 |
| Značka | HYDIS |
| Velikost | 12.1 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 220 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | eDP |
| značka panelu | HYDIS |
| panelový model | HV121WX5-121 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | AFFS, Normally Black, Transmissive |
| aktivní oblast | 261.12×163.2 mm |
| obrys | 276.8×180×6.8 mm |
| povrch | |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 12S4PWLEDEmbedded (LED Driver) |
| signálové rozhraní | eDP (1 Lane), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-112 | HYDIS | 12.1 | 1280×800 |
| B101EAN01.4 | AUO | 10.1 | 1280×800 |
| BF097XN | Innolux | 9.7 | 1024×768 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| HV121P01-101 | HYDIS | 12.1 | 1400×1050 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| LD089WU1-SM01 | LG Display | 8.9 | 1920×1200 |
| LP101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
