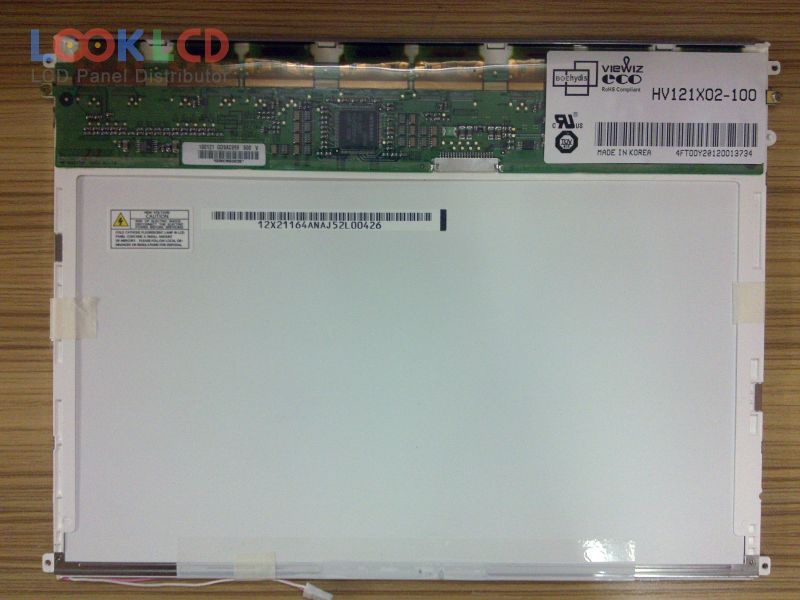

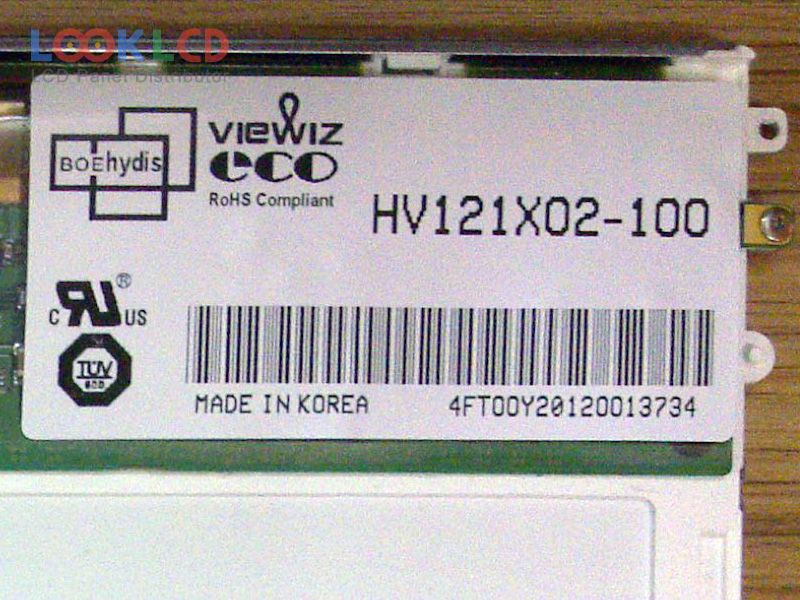

| PartNumber | HV121X02-100 |
| Značka | HYDIS |
| Velikost | 12.1 |
| aplikace | IA |
| Rozlišení | 1024×768 |
| Složení | CELL |
| Jas | 0 |
| CR | 450:1 |
| Barvy | 262K |
| Podsvícení | No B/L |
| Rozhraní | LVDS |
| značka panelu | BOE HYDIS |
| panelový model | HV121X02-100 |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 12.1 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | AFFS, Normally Black, Transmissive |
| aktivní oblast | 245.76×184.32 mm |
| povrch | Glare (Haze 0%), Antireflection |
| propustnost | 5.91% (Typ.)(with Polarizer) |
| kontrastní poměr | 450:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193140% |
| Doba odezvy | 32 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
