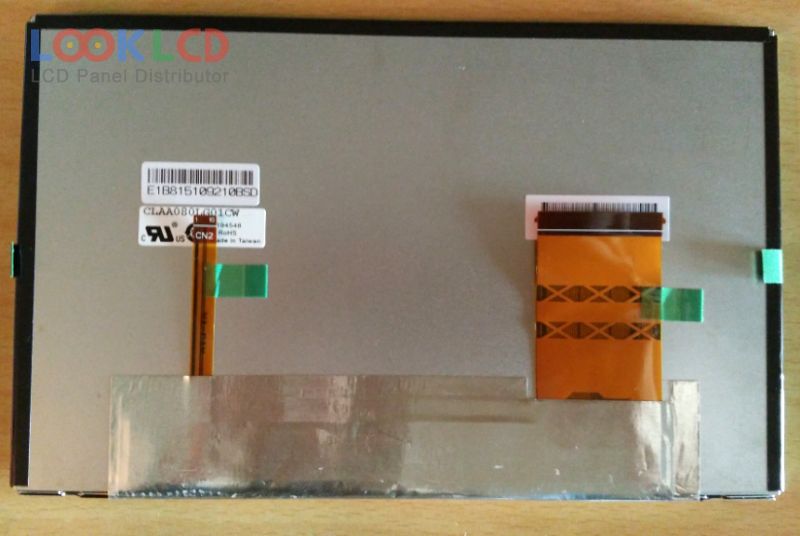

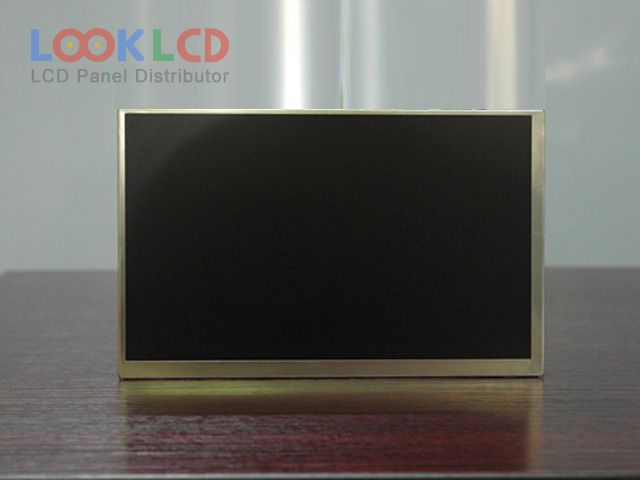

| PartNumber | CLAA080LG01CW |
| Značka | CPT |
| Velikost | 8.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 750 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CPT |
| panelový model | CLAA080LG01CW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 175.2×105.12 mm |
| obrys | 186.5×117.2×6.43 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 750 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193171% |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 11S2PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6-bit), 60 pins |
| vstupní napětí | 3.3/12.0/18.0/-6.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | CNS |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080LG01CW | CPT | 8.0 | 800×480 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| CLAA080WQ08 XN | CPT | 8.0 | 800×1280 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| CLAA089NA0BCW | CPT | 8.9 | 1024×600 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| C065GW03 V0 | AUO | 6.5 | 400×240 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| G141I1-L01 | Innolux | 14.1 | 1280×800 |
| G150X1-L02 | Innolux | 15.0 | 1024×768 |
| LB043WQ4-TD01 | LG Display | 4.3 | 480×272 |
| LQ065T5GA01 | SHARP | 6.5 | 400×234 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| PW080XU4 | E Ink | 8.0 | 480×220 |
