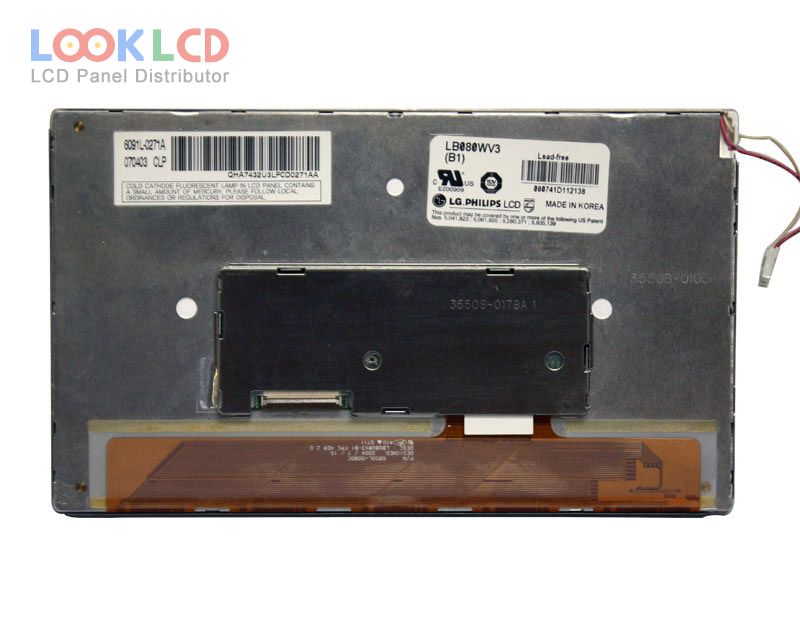

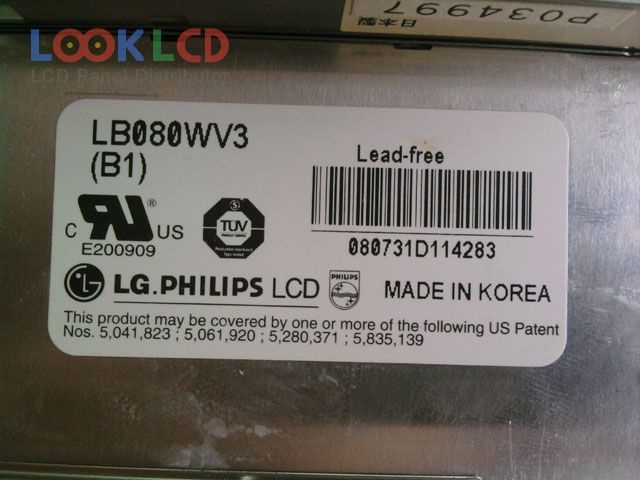

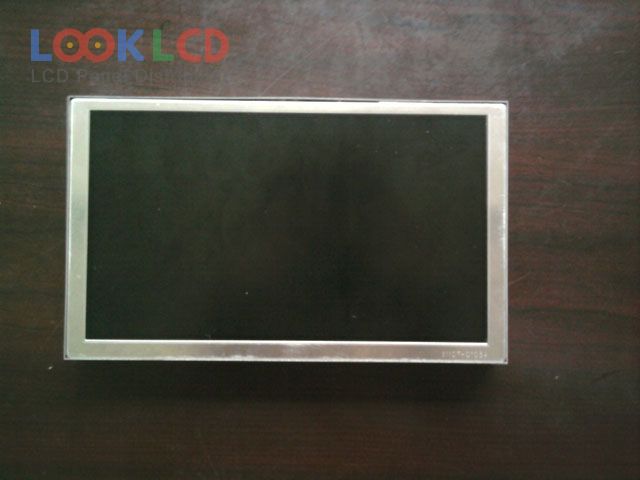

| PartNumber | LB080WV3-B1 |
| Značka | LG Display |
| Velikost | 8.0 |
| aplikace | DPF |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 400 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | LG.Philips LCD |
| panelový model | LB080WV3-B1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 176.64×99.36 mm |
| obrys | 198×117 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 10/30 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS/TTL (1 ch, 6-bit), 40 pins |
| vstupní napětí | 5.0V (Typ.)(VCC) |
| aplikace | DPF |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LB080WV3-B1 | LG Display | 8.0 | 800×480 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LB080WV4-TA01 | LG Display | 8.0 | 800×480 |
| LB080WV4-TD02 | LG Display | 8.0 | 800×480 |
| LB080WV6-TA03 | LG Display | 8.0 | 800×480 |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| TM080VG-22L01 | SANYO | 8.0 | 640×480 |
| A080SN01 V5 | AUO | 8.0 | 800×600 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| EJ080NA-04B | Innolux | 8.0 | 1024×768 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| LSA40AT9001 | Innolux | 10.4 | 800×600 |
| LTA104S1-L01 | Samsung | 10.4 | 800×600 |
| LTP700WV-F02 | Samsung | 7.0 | 800×480 |
| PA079DS4 | E Ink | 7.9 | 480×234 |
