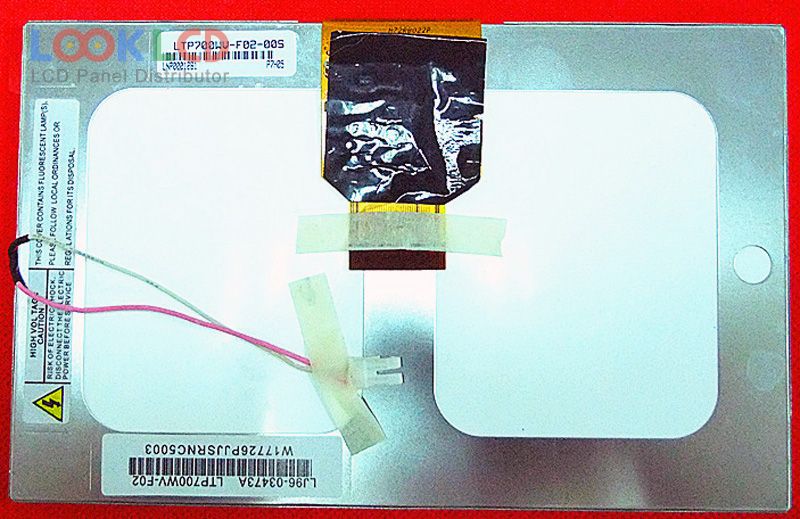

| PartNumber | LTP700WV-F02 |
| Značka | Samsung |
| Velikost | 7.0 |
| aplikace | DPF |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 300:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | SAMSUNG |
| panelový model | LTP700WV-F02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800×480(RGB) , WVGA |
| zobrazovací mód | TN, Normally White, TMR |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104×5.7 mm |
| povrch | |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 300 : 1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193158% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| rohs: | |
| aplikace | DPF |
