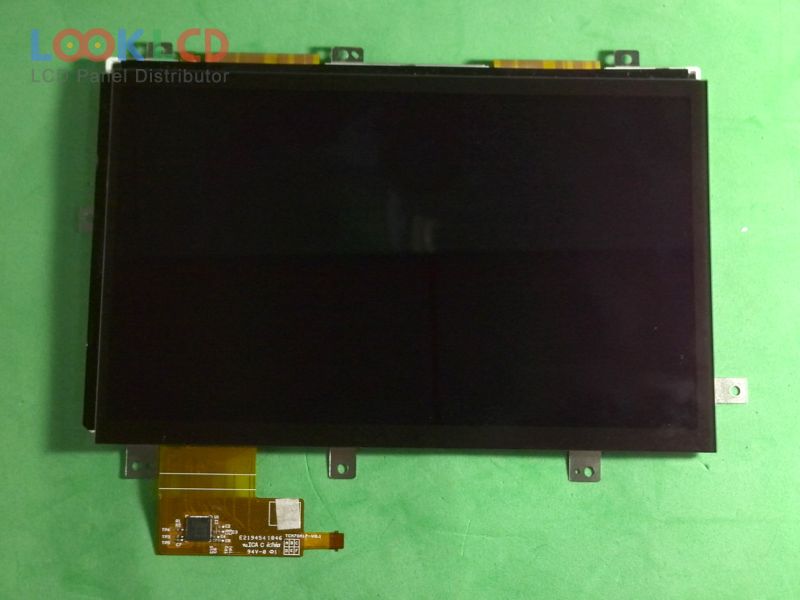

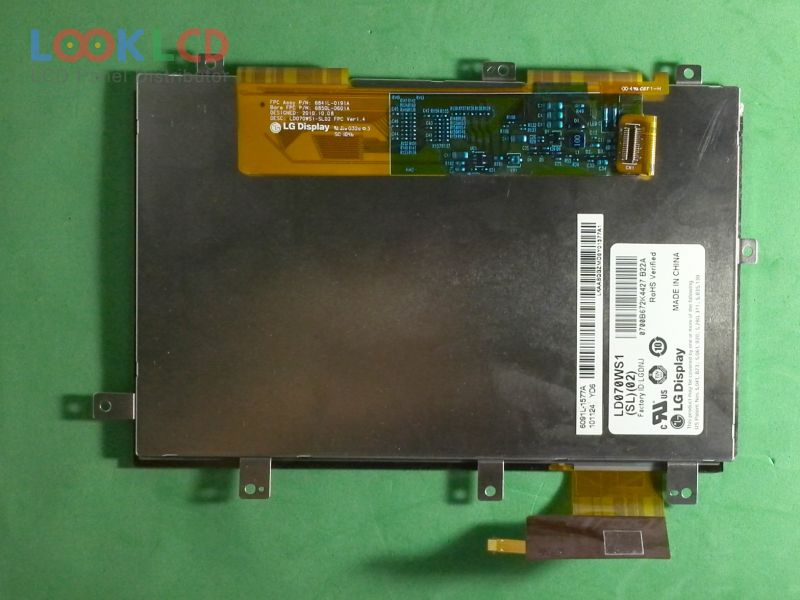

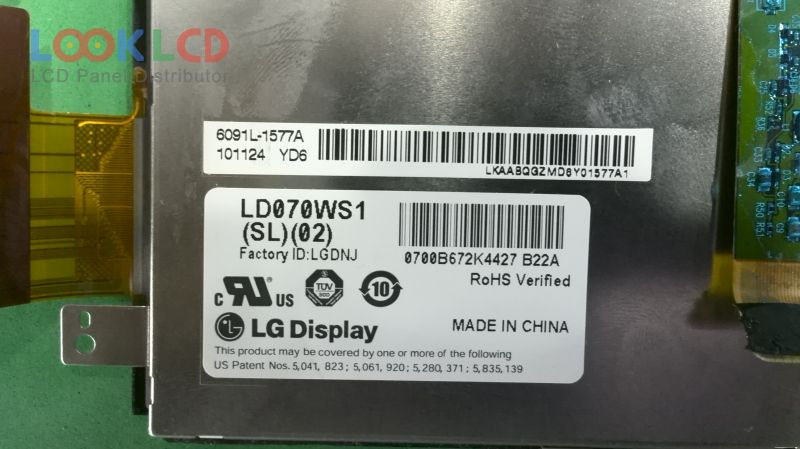

| PartNumber | LD070WS1-SL02 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | UMPC |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 400 |
| CR | 800:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LD070WS1-SL02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 153.6×90 mm |
| obrys | 162.8×102.9×2.67 mm |
| povrch | Hard coating |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Doba odezvy | 50 (Max.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5S4PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit) + SPI, 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | UMPC |
| LD070WS1-SL02 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL02 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL04 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL06 | LG Display | 7.0 | 1024×600 |
| LD070WU1-SM01 | LG Display | 7.0 | 1200×1920 |
| LD070WU2-SH01 | LG Display | 7.0 | 1200×1920 |
| LD070WU2-SM01 | LG Display | 7.0 | 1200×1920 |
| LD070WX5-SM01 | LG Display | 7.0 | 900×1440 |
| LD070WX6-SM01 | LG Display | 7.0 | 800×1280 |
| HSD070PWW1-C00 | HannStar | 7.0 | 1280×800 |
| HV056WX1-101 | HYDIS | 5.6 | 1280×800 |
| LB048WV1-TL01 | LG Display | 4.8 | 800×480 |
| LD070WS1-SL02 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL02 | LG Display | 7.0 | 1024×600 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| LT080EE04000 | TOSHIBA | 8.0 | 1600×768 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| LTD056EV7F00 | TOSHIBA | 5.6 | 1280×800 |
| N070Y1-T01 | Innolux | 7.0 | 800×480 |
