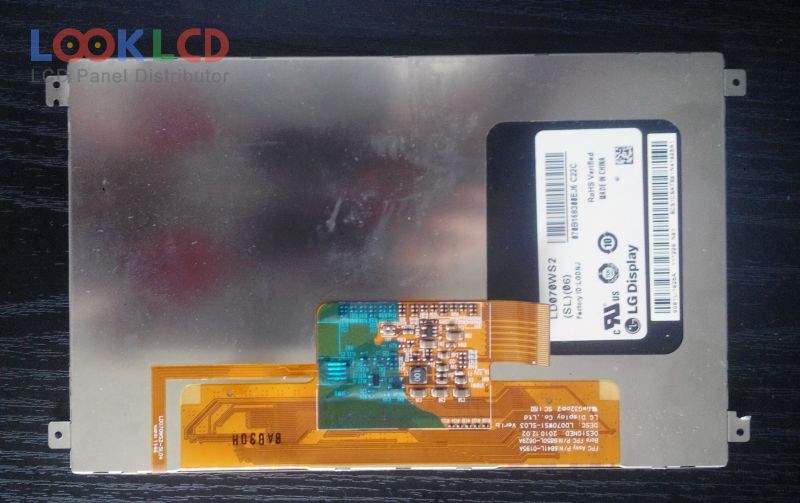

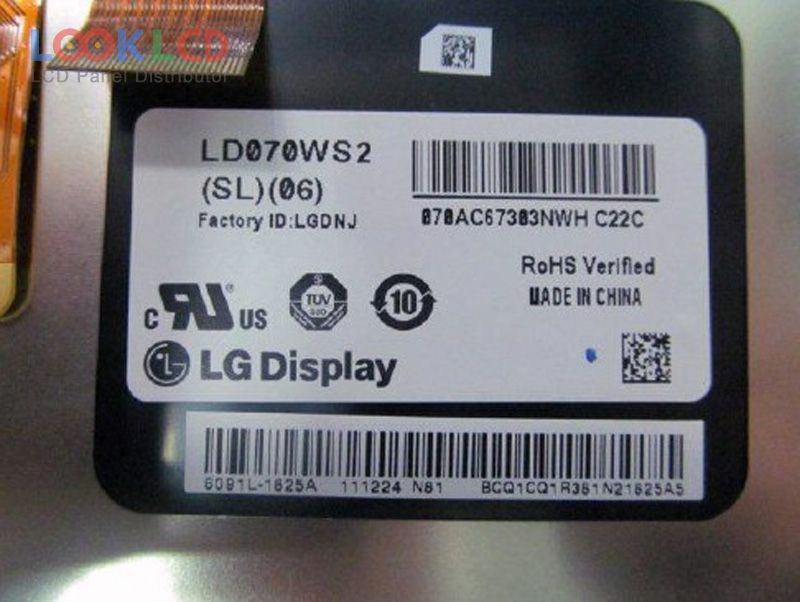

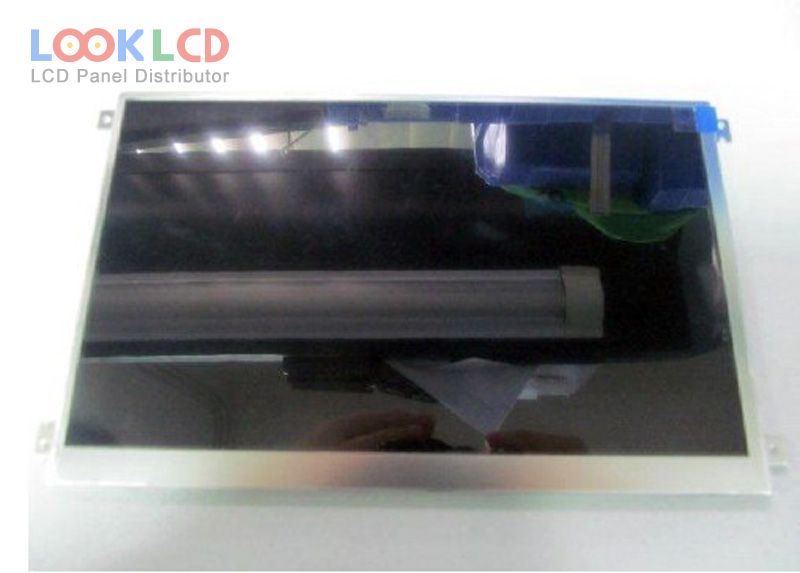

| PartNumber | LD070WS2-SL06 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | UMPC |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 600 |
| CR | 800:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LD070WS2-SL06 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 153.6×90 mm |
| obrys | 162.6×102.7×4.4 mm |
| povrch | Antireflection |
| jas | 600 cd/m² (Min.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Doba odezvy | 40 (Max.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S3PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit) + SPI, 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | UMPC |
