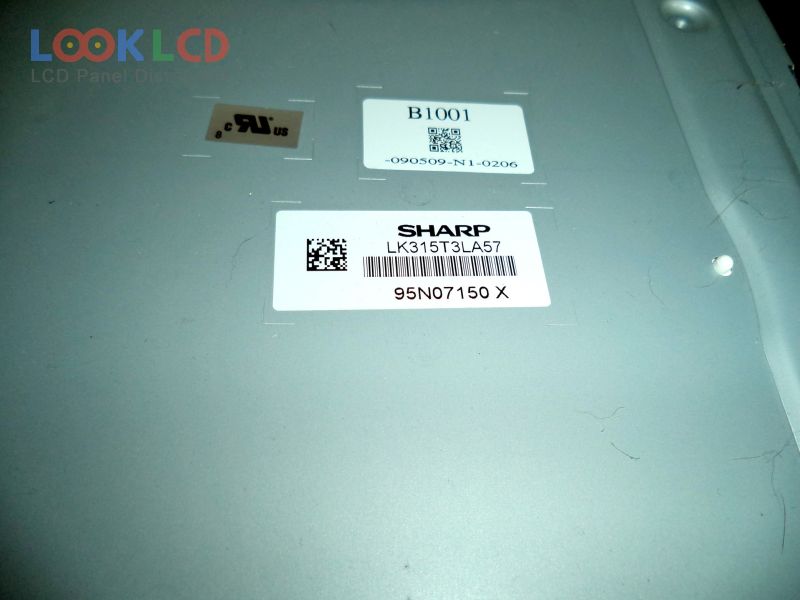

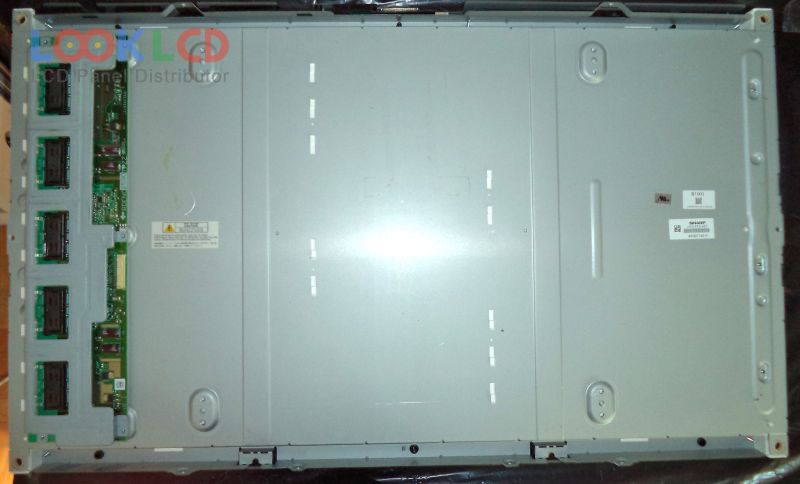

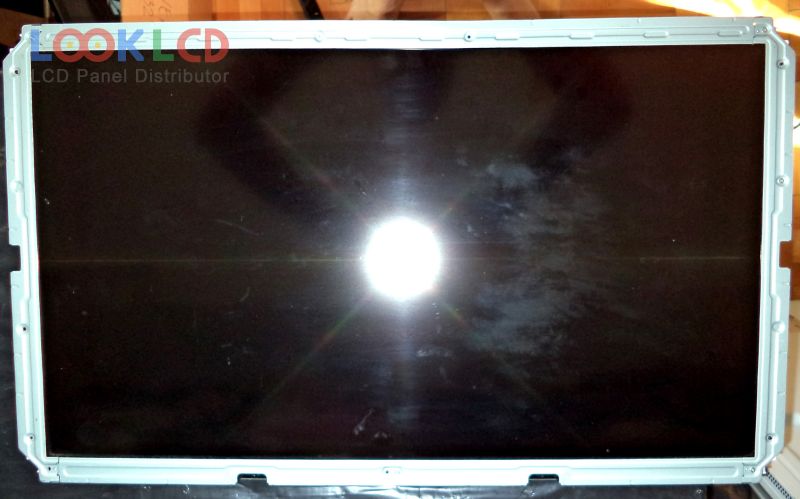

| PartNumber | LK315T3LA57 |
| Značka | SHARP |
| Velikost | 31.5 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 500 |
| CR | 2500:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SHARP |
| panelový model | LK315T3LA57 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 31.5 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | ASV, Normally Black, Transmissive |
| aktivní oblast | 697.685×392.256 mm |
| obrys | 760×450 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 2500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 7 (Typ.)(G to G) |
| úhel pohledu | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 10 pcsCCFLEmbedded (Inverter) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
| LC320WXE-SCA1 | LG Display | 31.5 | 1366×768 |
| LK315D3HA9K | SHARP | 31.5 | 1920×1080 |
| LK315D3LA4S | SHARP | 31.5 | 1920×1080 |
| LK315T3LA57 | SHARP | 31.5 | 1366×768 |
| LK315T3LA61 | SHARP | 31.5 | 1366×768 |
| LTA320AP32 | Samsung | 31.5 | 1366×768 |
| ST3151A05-8 | CSOT | 31.5 | 1366×768 |
| T315HW04 V8 | AUO | 31.5 | 1920×1080 |
| T315XW03 VF | AUO | 31.5 | 1366×768 |
| V315H3-LE3 | Innolux | 31.5 | 1920×1080 |
| LC370EUN-SDV1 | LG Display | 37 | 1920×1080 |
| LC370WUN-SCC1 | LG Display | 37 | 1920×1080 |
| LC470EUD-SDM1 | LG Display | 47 | 1920×1080 |
| LC550DUN-PGP2 | LG Display | 55 | 1920×1080 |
| LC550DUY-SHA2 | LG Display | 55 | 1920×1080 |
| LTF320AP08 | Samsung | 31.5 | 1366×768 |
| T420HW08 V0 CELL | AUO | 42 | 1920×1080 |
| T470HVD01.1 | AUO | 47 | 1920×1080 |
| T645HW04 V0 CELL | AUO | 65 | 1920×1080 |
| T650QVR03.0 | AUO | 65 | 3840×2160 |
