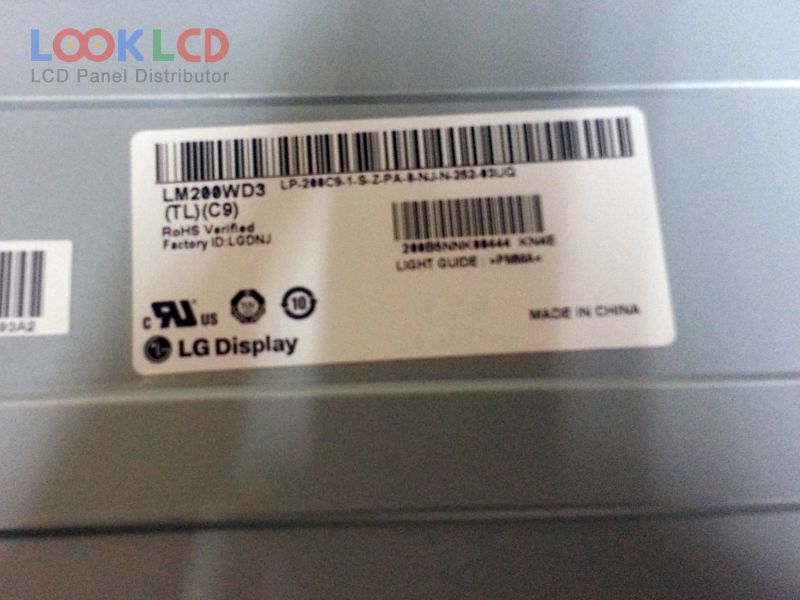

| PartNumber | LM200WD3-TLC9 |
| Značka | LG Display |
| Velikost | 20.0 |
| aplikace | DMPC |
| Rozlišení | 1600×900 |
| Složení | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LM200WD3-TLC9 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 20.0 inch |
| rozlišení | 1600(RGB)×900 , HD+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 442.8×249.075 mm |
| obrys | 462.8×272 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 1.1/3.9 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 stringsWLEDWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
