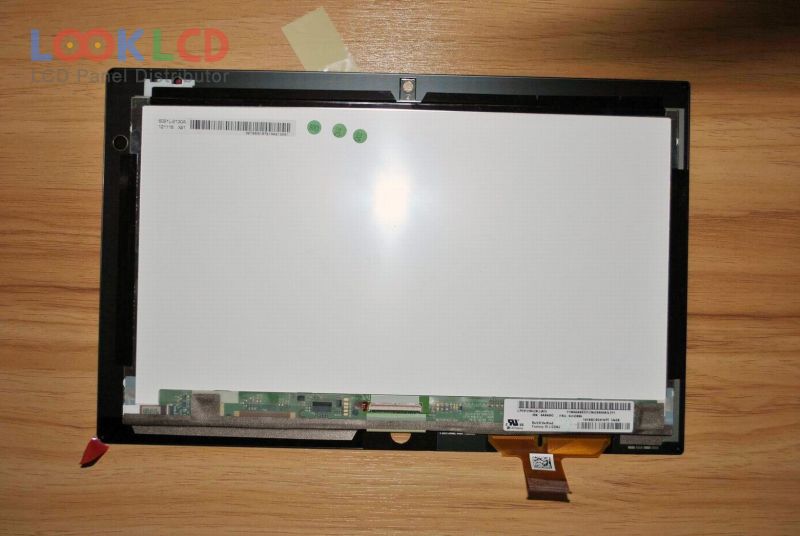

| PartNumber | LP101WH4-SLA3 |
| Značka | LG Display |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1366×768 |
| Složení | Assembly |
| Jas | 360 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LP101WH4-SLA3 |
| typ panelu | a-Si TFT-LCD , Assembly |
| velikost panelu | 10.1 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| aktivní oblast | 222.52×125.11 mm |
| obrys | 251.3×160.6×5.8 mm |
| povrch | Anti Fingerprint, Hard coating (8H) |
| jas | 360 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | LVDS (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
