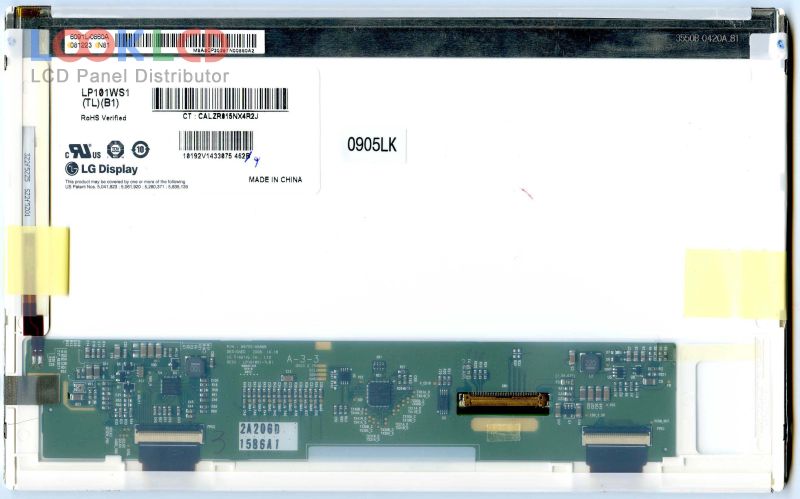

| PartNumber | LP101WS1-TLB1 |
| Značka | LG Display |
| Velikost | 10.1 |
| aplikace | NOPC |
| Rozlišení | 1024×576 |
| Složení | LCM |
| Jas | 200 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG.Philips LCD |
| panelový model | LP101WS1-TLB1 5 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1024(RGB)×576 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 222.72×125.28 mm |
| obrys | 235×143×5.2 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Min.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| aplikace | NOPC |
