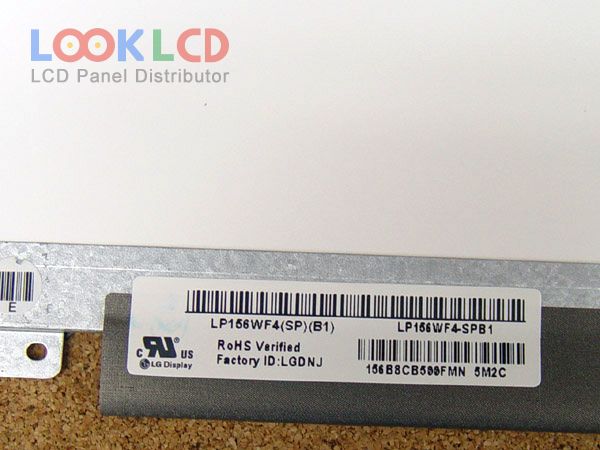

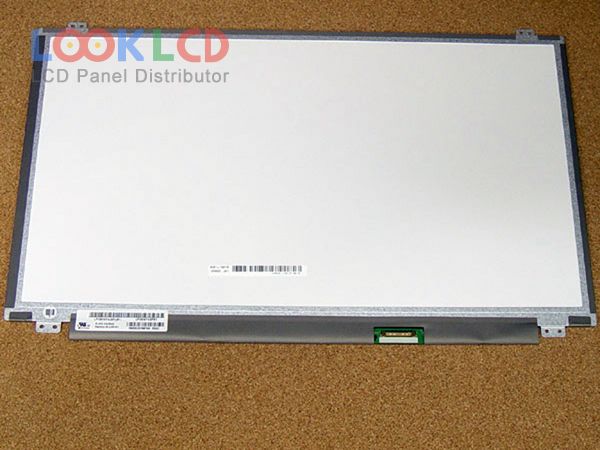

| PartNumber | LP156WF4-SPB1 |
| Značka | LG Display |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 300 |
| CR | 700:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | eDP |
| značka panelu | LG Display |
| panelový model | LP156WF4-SPB1 18 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | AH-IPS, Normally Black, Transmissive |
| aktivní oblast | 344.16×193.59 mm |
| obrys | 359.5×224.13×3.4 mm |
| tvarový styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Antiglare, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193160% |
| Doba odezvy | 35 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6 stringsWLEDEmbedded (LED Driver) |
| signálové rozhraní | eDP (2 Lanes), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| LP156WF3-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLBA | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SPK1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLQ2 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPD1 | LG Display | 15.6 | 1366×768 |
| B116XTB01.0 | AUO | 11.6 | 1366×768 |
| LP133WX1-TLN3 | LG Display | 13.3 | 1280×800 |
| LP156WD1-TPB1 | LG Display | 15.6 | 1600×900 |
| LP173WF4-SPD1 | LG Display | 17.3 | 1920×1080 |
| LTD104EA5R | TOSHIBA | 10.4 | 1024×768 |
| LTN156AT02-A04 | Samsung | 15.6 | 1366×768 |
| N156B6-L3D | Innolux | 15.6 | 1366×768 |
| N156BGE-E42 | Innolux | 15.6 | 1366×768 |
| N173HCE-E31 | Innolux | 17.3 | 1920×1080 |
| NT156WHM-N33 | BOE | 15.6 | 1366×768 |
