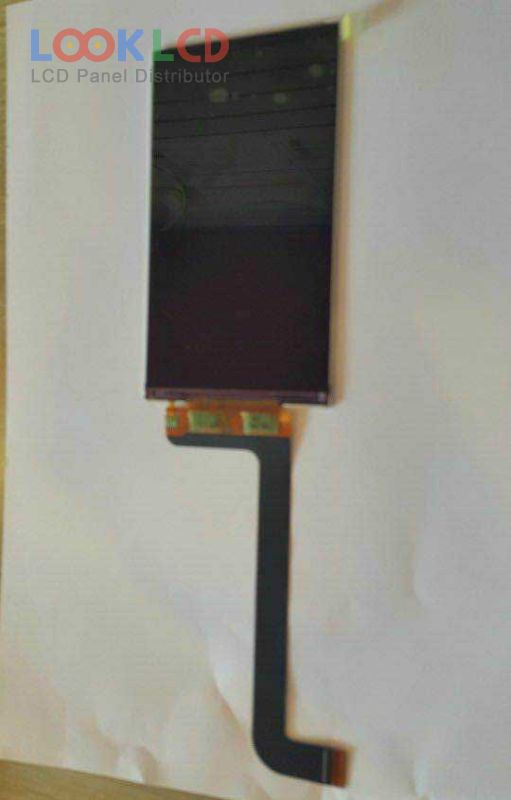

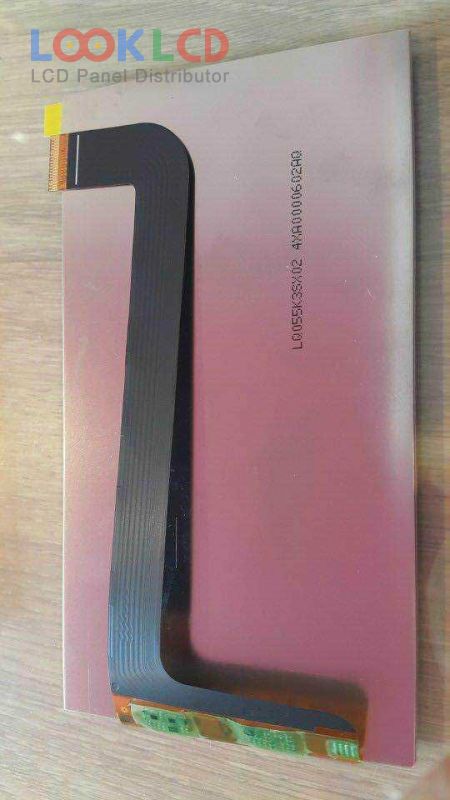

| PartNumber | LQ055K3SX02 |
| Značka | SHARP |
| Velikost | 5.5 |
| aplikace | MPH |
| Rozlišení | 720×1280 |
| Složení | LCM |
| Jas | 500 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | SHARP |
| panelový model | LQ055K3SX02 |
| typ panelu | IGZO TFT-LCD , LCM |
| velikost panelu | 5.5 inch |
| rozlišení | 720(RGB)×1280 , WXGA |
| zobrazovací mód | New Mode2, Normally Black, Transmissive |
| aktivní oblast | 68.04×120.96 mm |
| obrys | 72.3×130.39 mm |
| povrch | |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193170% |
| Doba odezvy | 35 (Max.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 stringsWLEDWithout Driver |
| signálové rozhraní | MIPI (4 data lanes), 39 pins |
| vstupní napětí | 1.8/2.8V (Typ.)(IOVCC/VCC) |
| aplikace | MPH |
