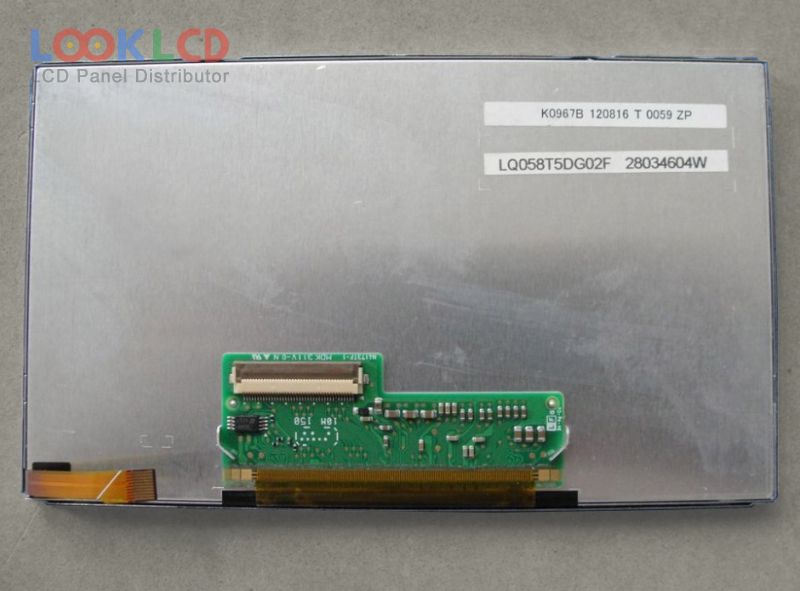

| PartNumber | LQ058T5DG02F |
| Značka | SHARP |
| Velikost | 5.8 |
| aplikace | CNS |
| Rozlišení | 480×240 |
| Složení | LCM |
| Jas | 420 |
| CR | |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ058T5DG02F |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.8 inch |
| rozlišení | 480(RGB)×240 , WQVGA |
| zobrazovací mód | Transmissive |
| aktivní oblast | 128.4×70.92 mm |
| obrys | 139×82.7 mm |
| povrch | |
| jas | 420 cd/m² (Typ.) |
| kontrastní poměr | |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | |
| úhel pohledu | |
| typ lampy | WLED |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) |
| rohs: | |
| aplikace | CNS |
| CLAF058LA31 | CPT | 5.8 | 540×960 |
| LB058WQ1-SD01 | LG Display | 5.8 | 400×240 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LQ058T5BA01 | SHARP | 5.8 | |
| LQ058T5DG02F | SHARP | 5.8 | 480×240 |
| LQ058T5DG30 | SHARP | 5.8 | 480×240 |
| LQ058T5DG31 | SHARP | 5.8 | 480×240 |
| LQ058T5DR02 | SHARP | 5.8 | 480×272 |
| LQ6BW51N | SHARP | 5.8 | 480×234 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
| 70WVW1A | SII | 7.0 | 800×480 |
| AT102TN03 V.3 | Innolux | 10.2 | 800×480 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| DJ065NA-01C | Innolux | 6.5 | |
| LB080WV4-TA01 | LG Display | 8.0 | 800×480 |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| PW050XS3 | E Ink | 5.0 | 320×220 |
| PW070NS1W2 | E Ink | 7.0 | 480×320 |
