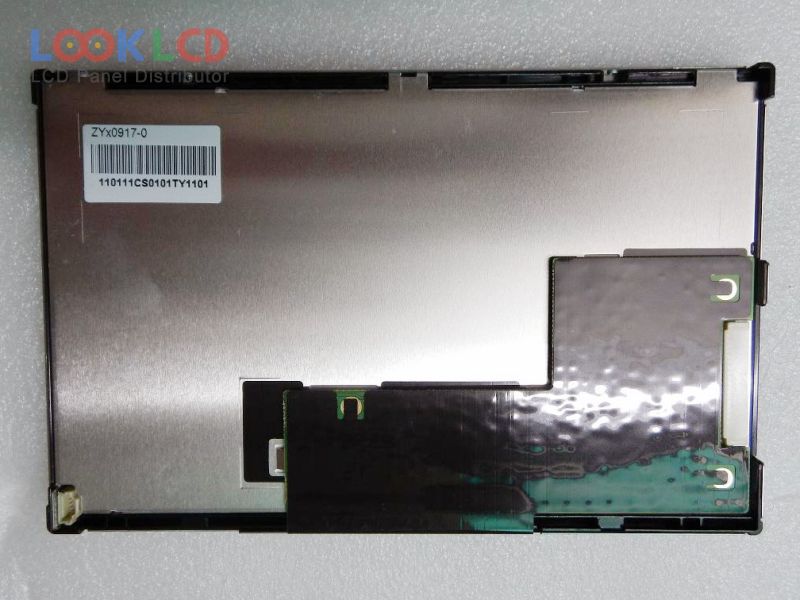

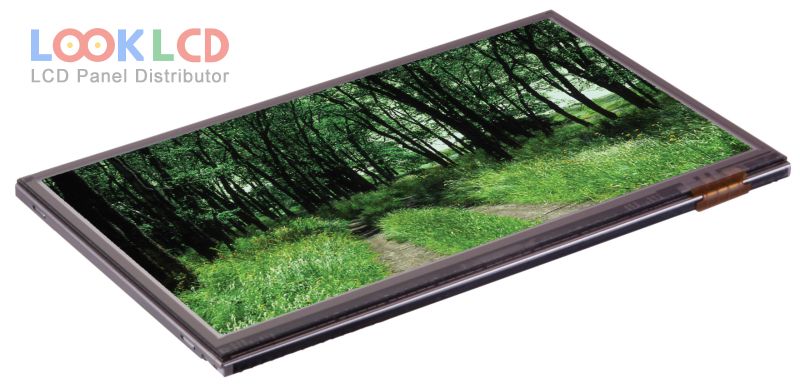

| PartNumber | LQ070Y3LW01 |
| Značka | SHARP |
| Velikost | 7.0 |
| aplikace | IA |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 360 |
| CR | 800:1 |
| Barvy | 16.2M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | SHARP |
| panelový model | LQ070Y3LW01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800×480(RGB) , WVGA |
| zobrazovací mód | ASV, Normally Black, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 163.2×104×9.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 360 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 35 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 7S2PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
