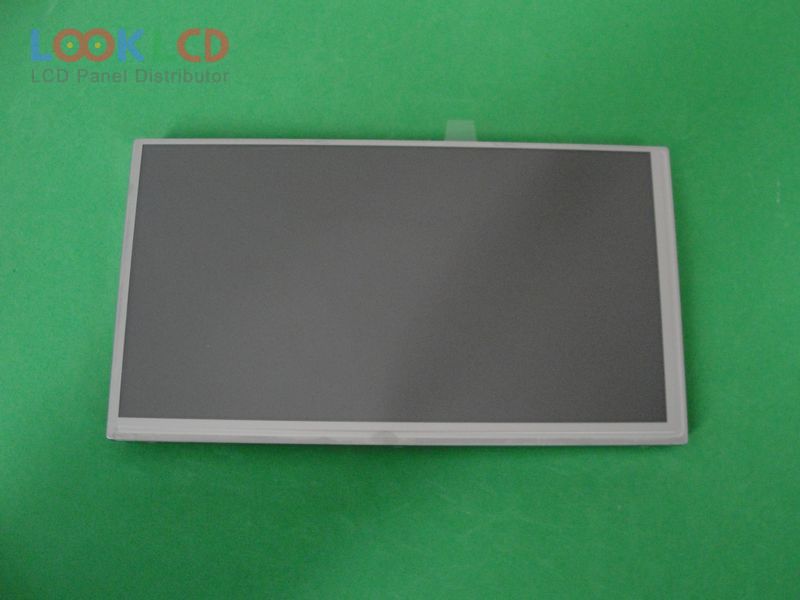

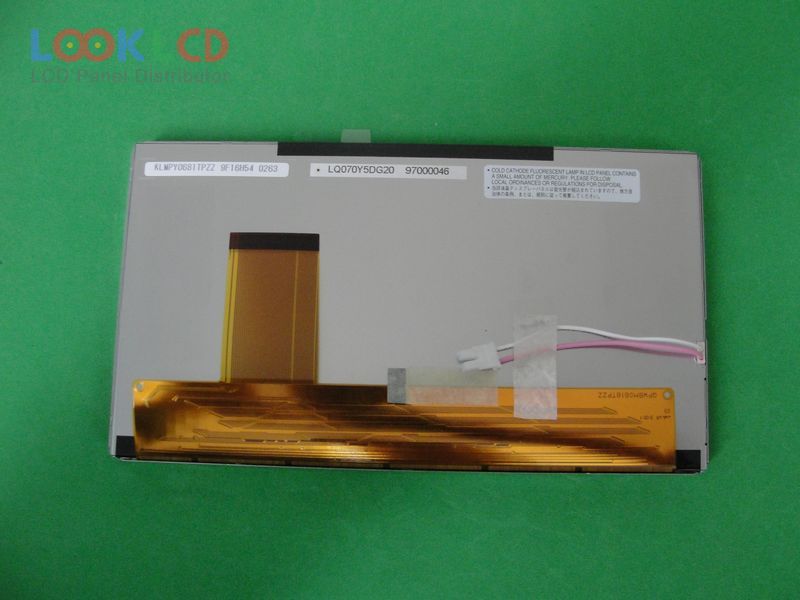

| PartNumber | LQ070Y5DG20 |
| Značka | SHARP |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 500 |
| CR | 100:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ070Y5DG20 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 156×82.8 mm |
| obrys | 167×93×7.5 mm |
| povrch | Antiglare |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 100:1 (Min.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 30/50 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/65/60 (Typ.)(CR≥5)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 50 pins |
| vstupní napětí | 5.3/3.3/15/-12V (Typ.)(VSHA/VSHD/VDD/VEE) |
| aplikace | CNS |
