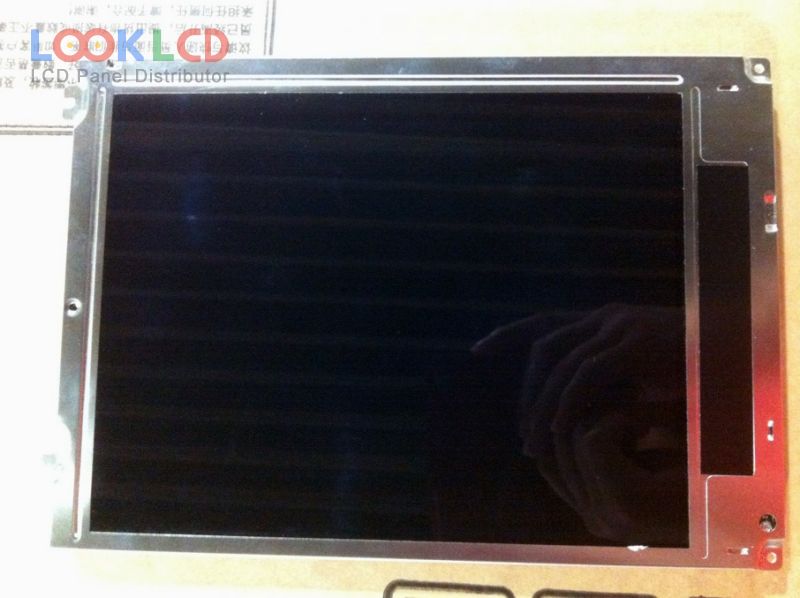

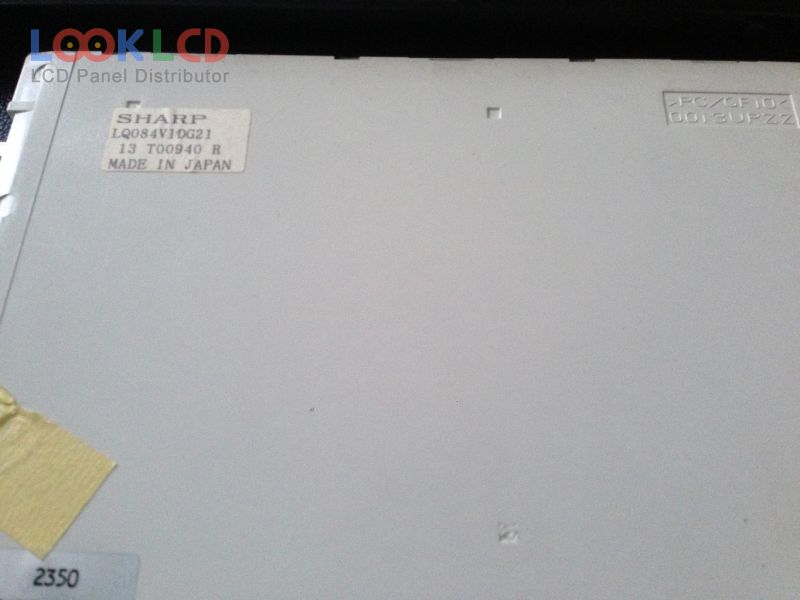

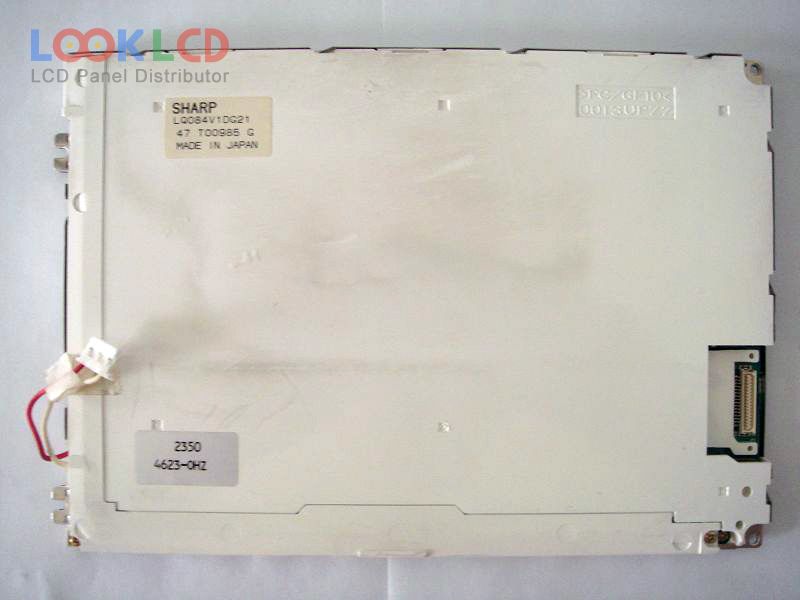

| PartNumber | LQ084V1DG21 |
| Značka | SHARP |
| Velikost | 8.4 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 300 |
| CR | 250:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ084V1DG21 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.4 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 170.88×129.6 mm |
| obrys | 216×152.4 mm |
| povrch | Antiglare (Haze 28%), Hard coating (3H), Antireflection |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 250:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 20/40 (Typ.)(Tr/Td) |
| úhel pohledu | 55/55/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 31 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VCC) |
| aplikace | IA |
| G084SN03 V0 | AUO | 8.4 | 800×600 |
| LQ084S1DH10 | SHARP | 8.4 | 800×600 |
| LQ084S3DG01 | SHARP | 8.4 | 800×600 |
| LQ084S3LG01 | SHARP | 8.4 | 800×600 |
| LQ084S3LG02 | SHARP | 8.4 | 800×600 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LQ084V1DG21 | SHARP | 8.4 | 640×480 |
| LQ084V1DG21E | SHARP | 8.4 | 640×480 |
| LQ084V1DG22 | SHARP | 8.4 | 640×480 |
| NL8060BC21-03 | NLT | 8.4 | 800×600 |
| AA084VG01 | Mitsubishi | 8.4 | 640×480 |
| AA104VH01 | Mitsubishi | 10.4 | 640×480 |
| AA121SK22 | Mitsubishi | 12.1 | 800×600 |
| G150XG03 V0 | AUO | 15.0 | 1024×768 |
| G150XTN03.0 | AUO | 15.0 | 1024×768 |
| LM081HB1T01 | SHARP | 8.1 | 640×240 |
| LQ235D1LW03 | SHARP | 23.6 | 1920×1080 |
| NL10276BC30-33D | NLT | 15.0 | 1024×768 |
| SG12864A | Other | 2.9 | 128×64 |
| TX20D28VM2BAB | KOE | 8.0 | 800×480 |
