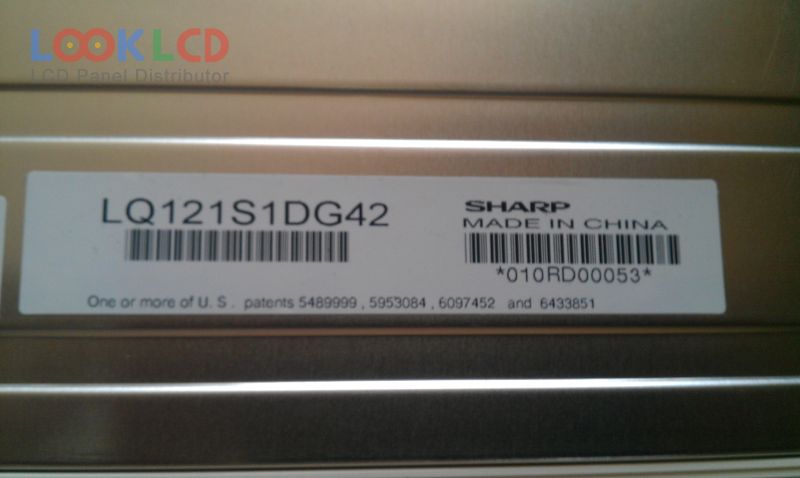

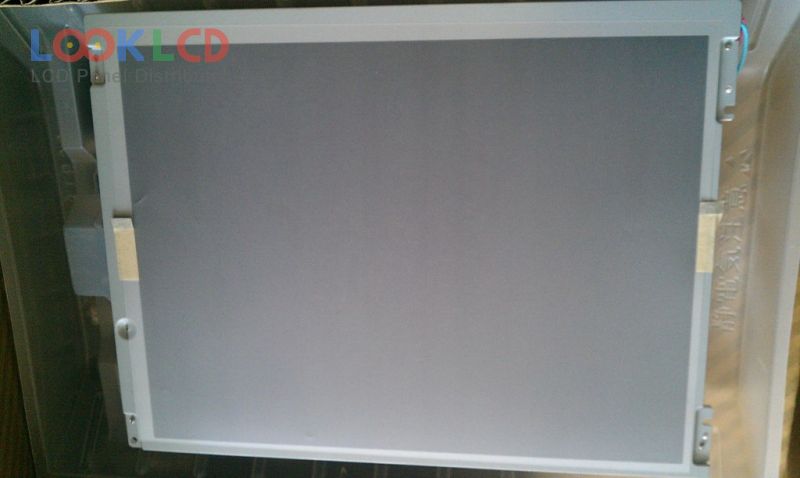

| PartNumber | LQ121S1DG42 |
| Značka | SHARP |
| Velikost | 12.1 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 370 |
| CR | 450:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ121S1DG42 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 246×184.5 mm |
| obrys | 276×209×11 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 370 cd/m² (Typ.) |
| kontrastní poměr | 450:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 10/25 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 41 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VCC) |
| aplikace | IA |
| LQ121K1LG52 | SHARP | 12.1 | 1280×800 |
| LQ121S1DG21 | SHARP | 12.1 | 800×600 |
| LQ121S1DG21A | SHARP | 12.1 | 800×600 |
| LQ121S1DG42 | SHARP | 12.1 | 800×600 |
| LQ121S1LG45 | SHARP | 12.1 | 800×600 |
| LQ121S1LG61 | SHARP | 12.1 | 800×600 |
| LQ121S1LG74A | SHARP | 12.1 | 800×600 |
| LQ121S1LG81 | SHARP | 12.1 | 800×600 |
| LQ121S1LG84 | SHARP | 12.1 | 800×600 |
| LQ121S1LH03 | SHARP | 12.1 | 800×600 |
| AA104SL02-DE1 | Mitsubishi | 10.4 | 800×600 |
| AA121XK01 | Mitsubishi | 12.1 | 1024×768 |
| EL480.60.43 CC | PLANAR | 8.1 | 480×60 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| KG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| LM240WU8-SLA2 | LG Display | 24.0 | 1920×1200 |
| LQ084S3DG01 | SHARP | 8.4 | 800×600 |
| LQ085Y3DG18 | SHARP | 8.5 | 800×480 |
| MD286TT00-C1 | ORTUSTECH | 10.4 | 640×480 |
| NL6448BC20-08E | NLT | 6.5 | 640×480 |
