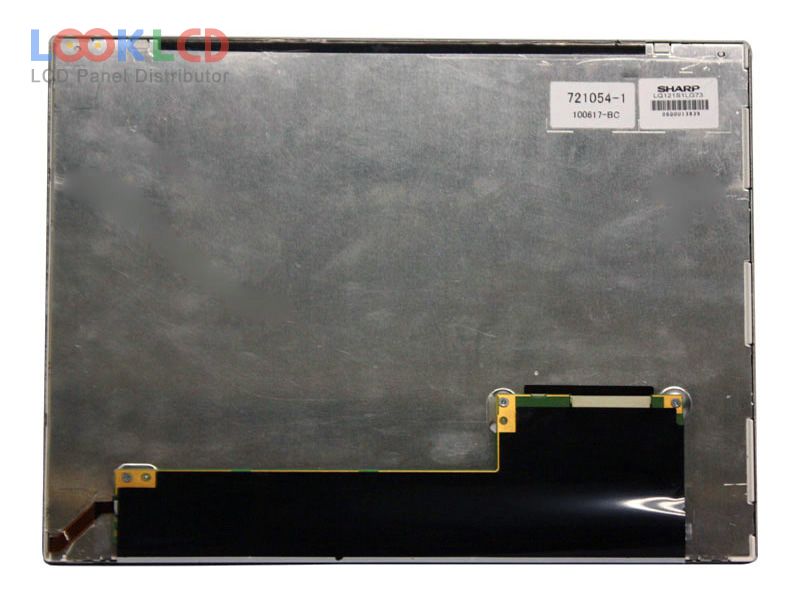

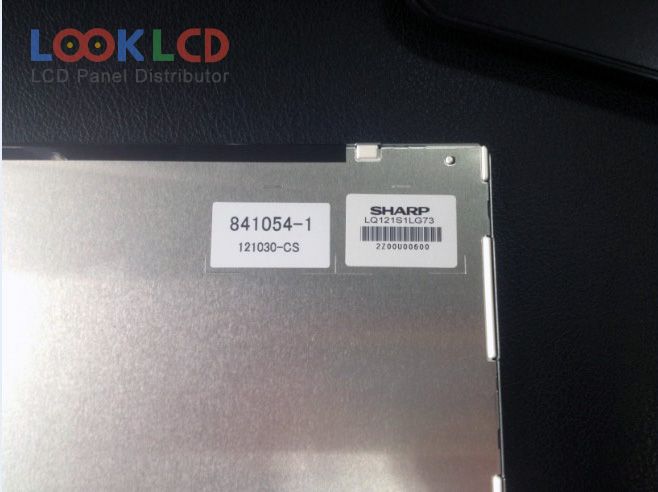

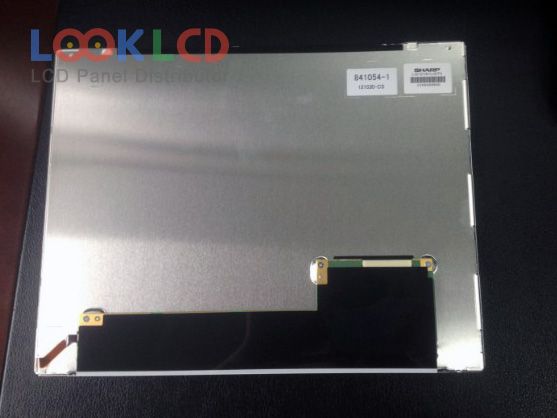

| PartNumber | LQ121S1LG73 |
| Značka | SHARP |
| Velikost | 12.1 |
| aplikace | GM |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 450 |
| CR | 800:1 |
| Barvy | 16.2M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | SHARP |
| panelový model | LQ121S1LG73 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 246×184.5 mm |
| obrys | 265×205×10 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC), CIE193176% |
| Doba odezvy | 30 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | GM |
