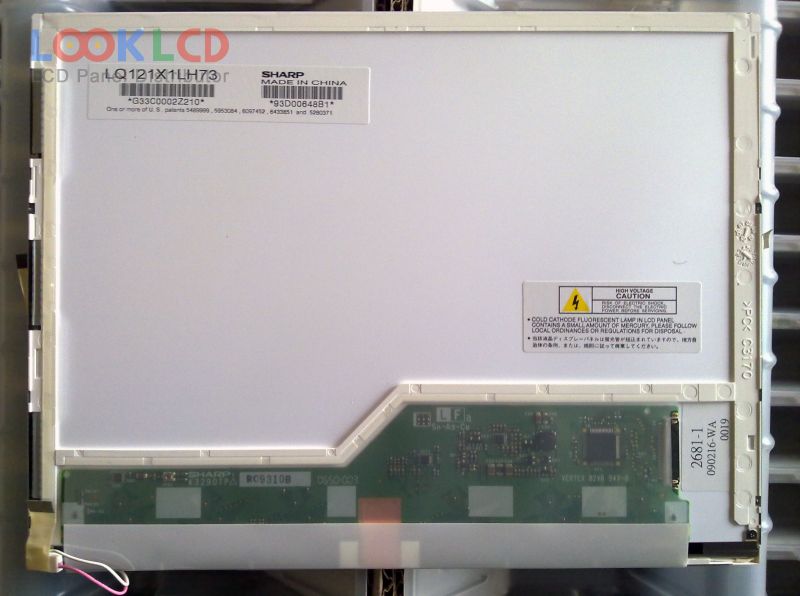

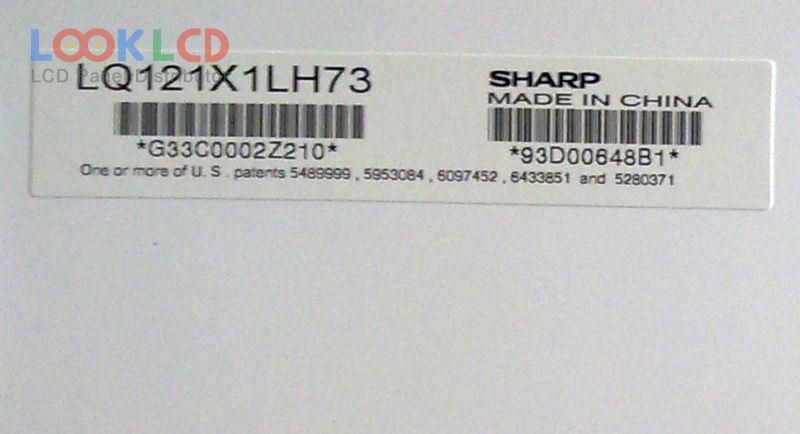

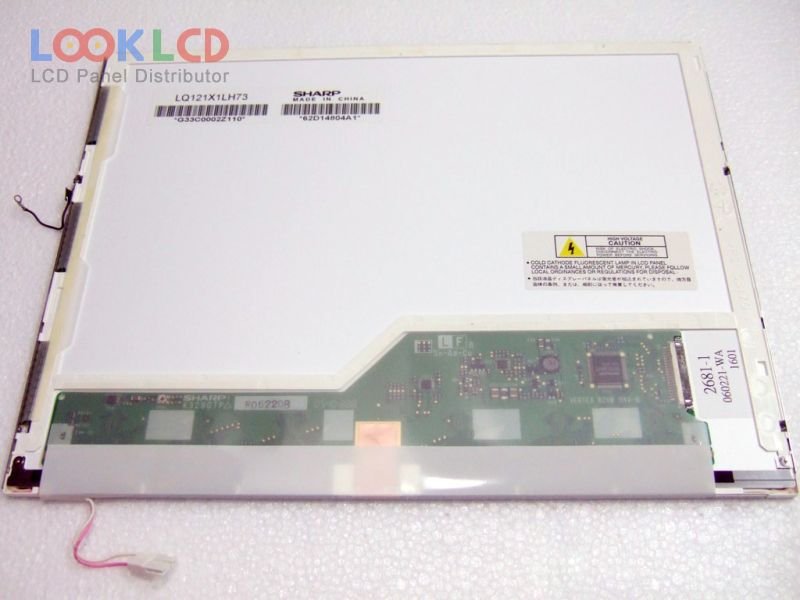

| PartNumber | LQ121X1LH73 |
| Značka | SHARP |
| Velikost | 12.1 |
| aplikace | NBPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 200 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SHARP |
| panelový model | LQ121X1LH73 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 245.76×184.32 mm |
| obrys | 260×197.5 mm |
| povrch | Antiglare, Hard coating (2H), Antireflection |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
