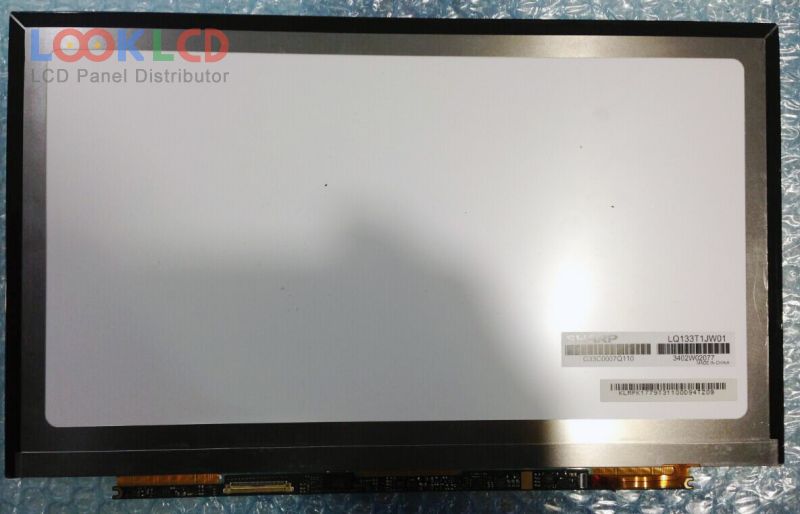

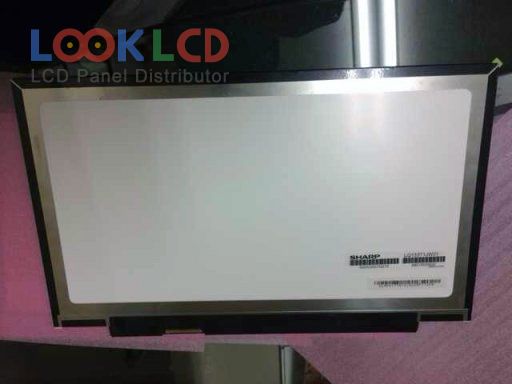

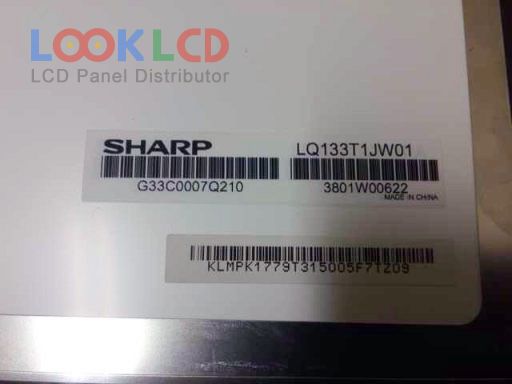

| PartNumber | LQ133T1JW01 |
| Značka | SHARP |
| Velikost | 13.3 |
| aplikace | NBPC |
| Rozlišení | 2560×1440 |
| Složení | LCM |
| Jas | 300 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | eDP |
| značka panelu | SHARP |
| panelový model | LQ133T1JW01 |
| typ panelu | IGZO TFT-LCD , LCM |
| velikost panelu | 13.3 inch |
| rozlišení | 2560(RGB)×1440 , Quad-HD |
| zobrazovací mód | Normally Black, Transmissive |
| aktivní oblast | 293.76×165.24 mm |
| obrys | 305.35×187.9×3.05 mm |
| tvarový styl | Slim (PCBA Flat, Depth ≤3.2mm) |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | eDP (4 Lanes), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
