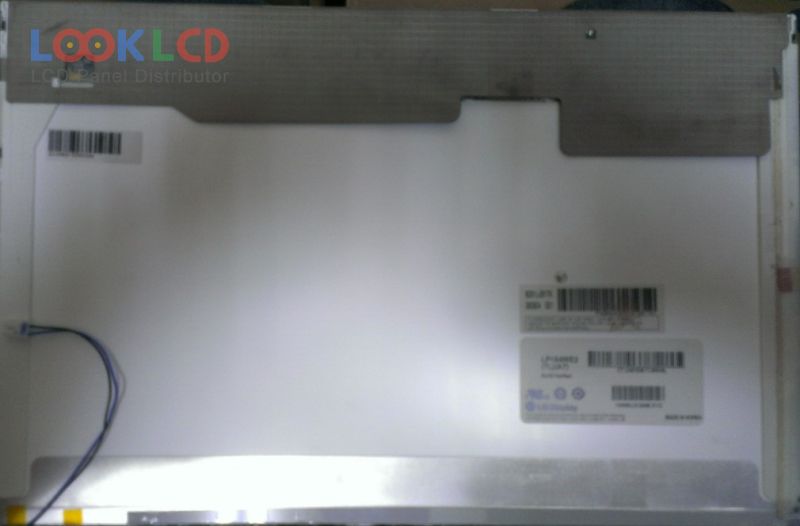

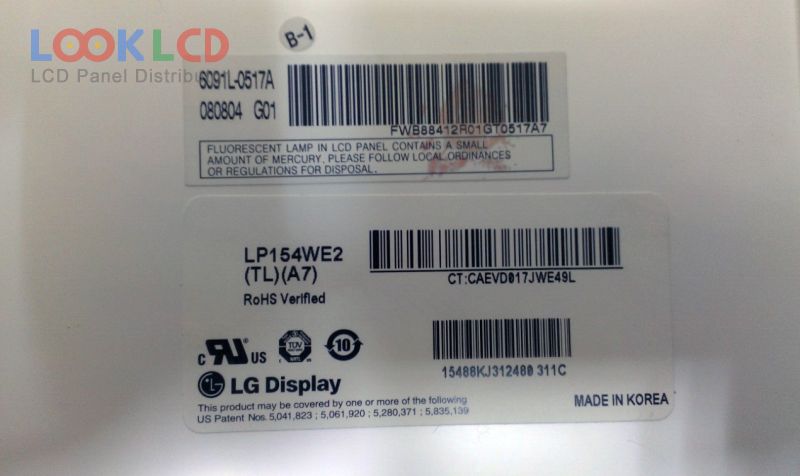

| PartNumber | LP154WE2-TLA7 |
| Značka | LG Display |
| Velikost | 15.4 |
| aplikace | NBPC |
| Rozlišení | 1680×1050 |
| Složení | LCM |
| Jas | 200 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | LG.Philips LCD |
| panelový model | LP154WE2-TLA7 9 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.4 inch |
| rozlišení | 1680(RGB)×1050 , WSXGA+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 331.38×207.11 mm |
| obrys | 344×222×6.5 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare (Haze 44%) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
