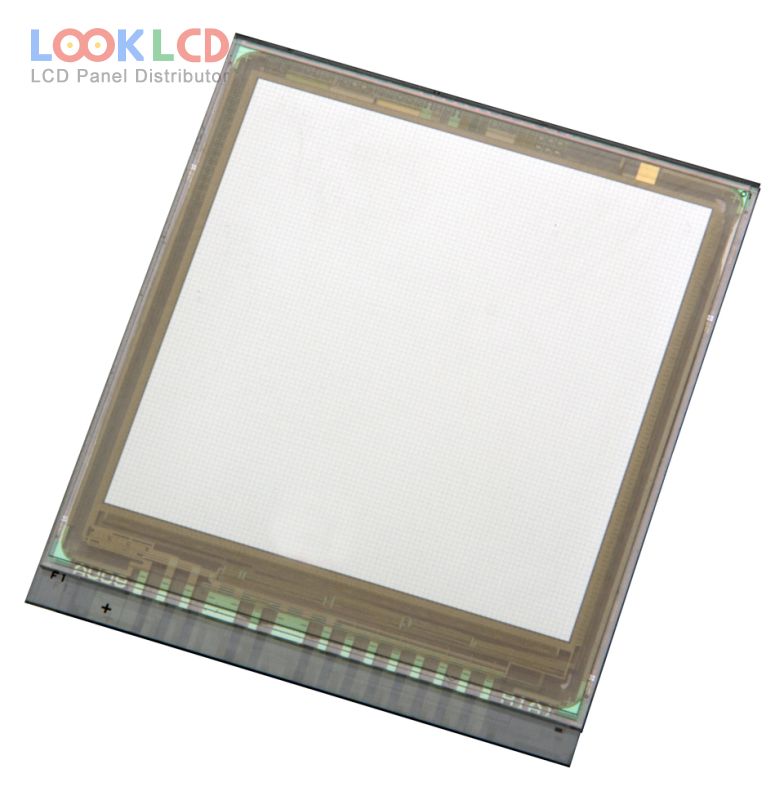

| PartNumber | LS013B4DN01 |
| Značka | SHARP |
| Velikost | 1.35 |
| aplikace | |
| Rozlišení | 96×96 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | Monochrome |
| Podsvícení | No B/L |
| Rozhraní | SPI |
| značka panelu | SHARP |
| panelový model | LS013B4DN01 |
| typ panelu | CG-Silicon , LCM |
| velikost panelu | 1.35 inch |
| rozlišení | 96×96 |
| zobrazovací mód | PNLC, Reflective |
| aktivní oblast | 24.192×24.192 mm |
| obrys | 28.2×32.34 mm |
| povrch | Without Polarizer, Hard coating (3H) |
| jas | |
| kontrastní poměr | 10:1 (Typ.)(Reflective) |
| zobrazit barvy | Monochrome (1-bit) |
| Doba odezvy | 50/50 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/60/60 (Min.)(CR≥2)(L/R/U/D) |
| typ lampy | No B/L |
| signálové rozhraní | SPI, 14 pins |
| vstupní napětí | 5.0/5.0V (Typ.)(VDD/VDDA) |
| LS013B4DN01 | SHARP | 1.35 | 96×96 |
| LS013B4DN02 | SHARP | 1.35 | 96×96 |
| LS013B4DN04 | SHARP | 1.35 | 96×96 |
| LS013B7DH01 | SHARP | 1.26 | 144×168 |
| LS013B7DH03 | SHARP | 1.28 | 128×128 |
| LS013B7DH05 | SHARP | 1.26 | 144×168 |
| LS013B7DH06 | SHARP | 1.33 | 128×128 |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| DLC0104AZOG | Other | 1.0 | 128×32 |
| LMS250GF01 | Samsung | 2.5 | |
| LQ150X1LGN1 | SHARP | 15.0 | 1024×768 |
| LQ150X1LGN2A | SHARP | 15.0 | 1024×768 |
| LTA070B2C0F | TOSHIBA | 7.0 | |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| OEL9M0083-Y-E | Other | 0.96 | 128×64 |
| OEL9M5001-R-E | Other | 2.7 | 128×64 |
