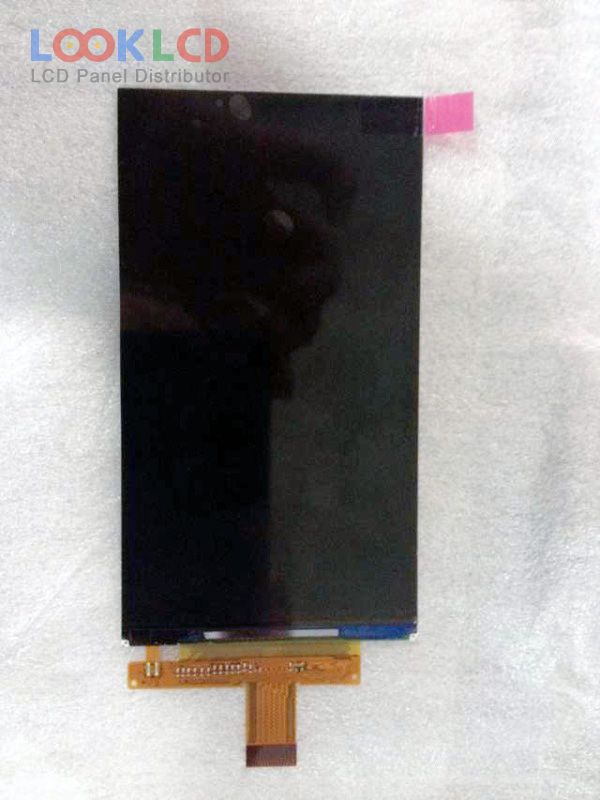

| PartNumber | LT043MDY5000 |
| Značka | TOSHIBA |
| Velikost | 4.3 |
| aplikace | MPH |
| Rozlišení | 720×1280 |
| Složení | LCM |
| Jas | 500 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | TOSHIBA |
| panelový model | LT043MDY5000 |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 720(RGB)×1280 , WXGA |
| zobrazovací mód | VMW, Normally Black, Transmissive |
| aktivní oblast | 53.46×95.04 mm |
| obrys | 56.26×102.74×1.45 mm |
| povrch | |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193160% |
| Doba odezvy | 20/20 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLED |
| signálové rozhraní | MIPI (4 data lanes), 31 pins |
| vstupní napětí | 1.8/2.85/5.4/-5.4V (Typ.)(VDDIO/VDC/VSP/VSN) |
| aplikace | MPH |
