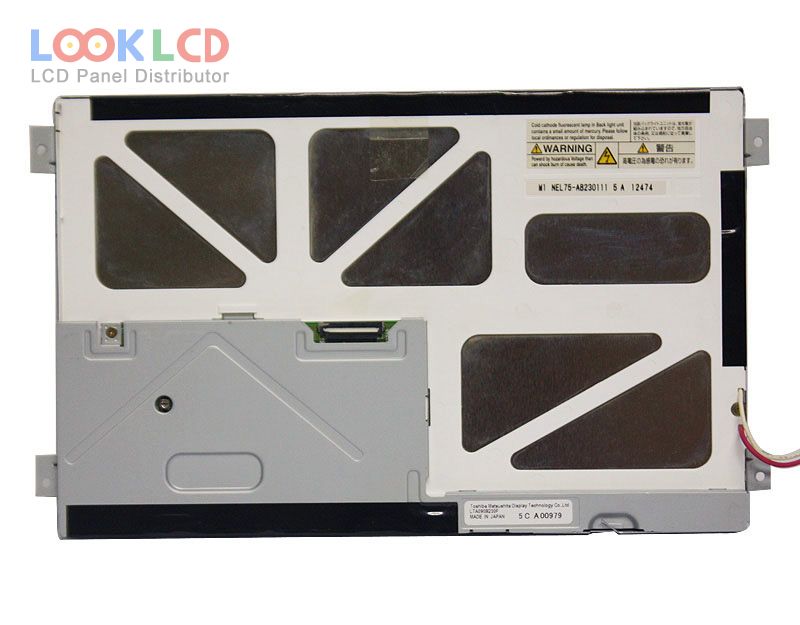

| PartNumber | LTA090B230F |
| Značka | TOSHIBA |
| Velikost | 9.0 |
| aplikace | IA |
| Rozlišení | 536×328 |
| Složení | LCM |
| Jas | 480 |
| CR | 250:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | Toshiba Matsushita |
| panelový model | LTA090B230F |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 9.0 inch |
| rozlišení | 536(RGB)×328 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 196.18×120.05 mm |
| obrys | 212.2×135.2 mm |
| povrch | Clear |
| jas | 480 cd/m² (Typ.) |
| kontrastní poměr | 250:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 70/40 (Max.)(Tr/Td) |
| úhel pohledu | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
