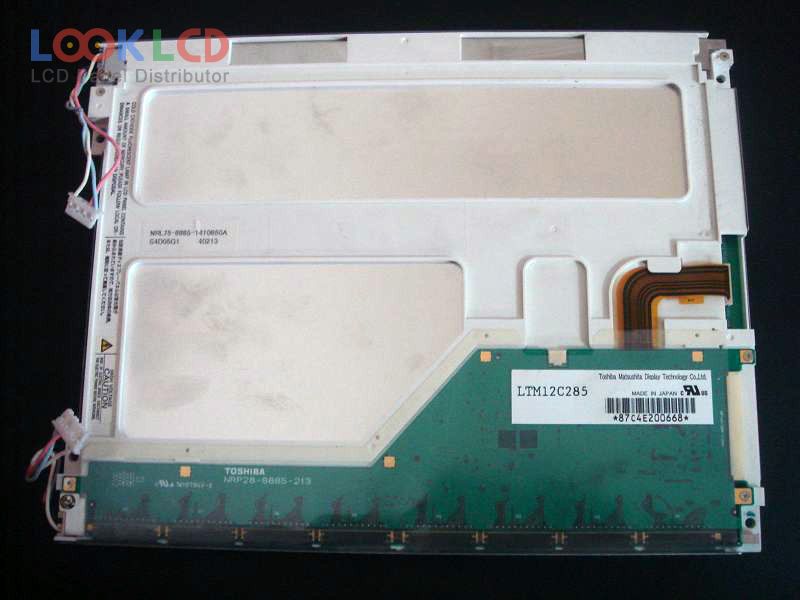

| PartNumber | LTM12C285 |
| Značka | TOSHIBA |
| Velikost | 12.1 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 500 |
| CR | 250:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | Toshiba Matsushita |
| panelový model | LTM12C285 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 246×184.5 mm |
| obrys | 278.3×216×13.5 mm |
| povrch | |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 250:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 50/50 (Max.)(Tr/Td) |
| úhel pohledu | |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 32 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| aplikace | IA |
