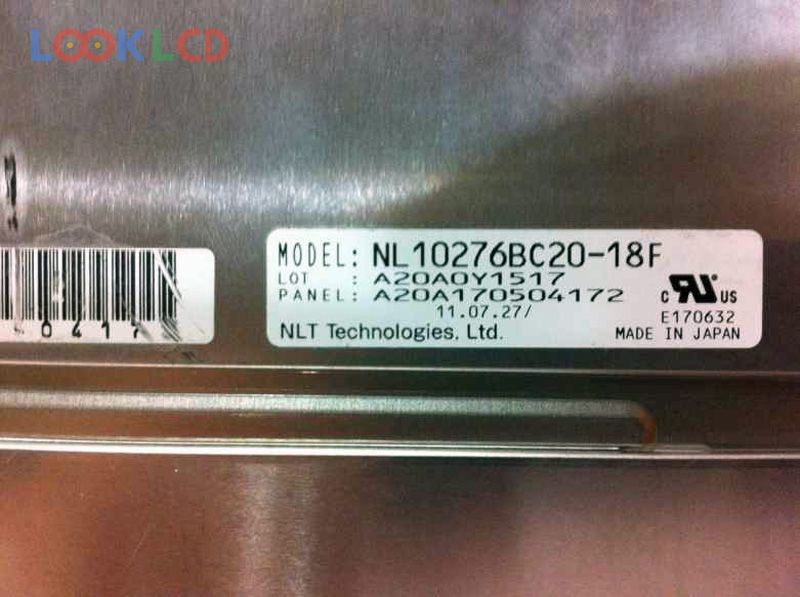

| PartNumber | NL10276BC20-18F |
| Značka | NLT |
| Velikost | 10.4 |
| aplikace | IA |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 800 |
| CR | 900:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL10276BC20-18F |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 210.4×157.8 mm |
| obrys | 228×178.5×9.2 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 800 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| Doba odezvy | 3/15 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5 stringsWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
| NL10276AC30-03 | NLT | 15.0 | 1024×768 |
| NL10276AC30-04R | NLT | 15.0 | 1024×768 |
| NL10276BC16-01 | NLT | 8.4 | 1024×768 |
| NL10276BC20-04 | NLT | 10.4 | 1024×768 |
| NL10276BC20-08 | NLT | 10.4 | 1024×768 |
| NL10276BC20-18 | NLT | 10.4 | 1024×768 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| NL10276BC28-21A | NLT | 14.1 | 1024×768 |
| NL10276BC30-33D | NLT | 15.0 | 1024×768 |
| NL10276BC30-38B | NLT | 15.0 | 1024×768 |
| DLC0700JBG-T-6 | Other | 7.0 | 1024×600 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| HSD121MS11-A | HannStar | 12.1 | 800×600 |
| LJ32H028 | SHARP | 4.7 | 320×240 |
| LQ104V1DG81 | SHARP | 10.4 | 640×480 |
| LQ121S1LG61 | SHARP | 12.1 | 800×600 |
| LTM10C209H | TOSHIBA | 10.4 | 640×480 |
| LTM12C275A | TOSHIBA | 12.1 | 800×600 |
| UG-9616TLBBG01 | WiseChip | 0.84 | 96×16 |
| V16C6448AC | E Ink | 6.4 | 640×480 |
