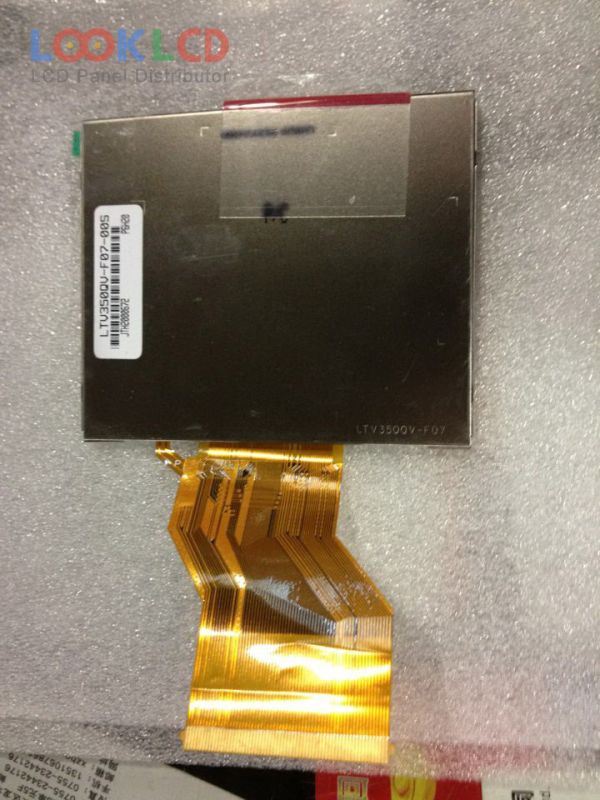

| PartNumber | LTV350QV-F07 |
| Značka | Samsung |
| Velikost | 3.5 |
| aplikace | DSC |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SAMSUNG |
| panelový model | LTV350QV-F07 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | PVA, Normally Black, TMR |
| aktivní oblast | 70.08×52.56 mm |
| obrys | 76.9×63.9×3.35 mm |
| povrch | |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500 : 1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 64 pins |
| vstupní napětí | 3.2/3.2V (Typ.)(VCC/VCI) |
| aplikace | DSC |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| H345VW01 V0 | AUO | 3.5 | 480×800 |
| LTV350QV-F02 | Samsung | 3.5 | 320×240 |
| LTV350QV-F04 | Samsung | 3.5 | 320×240 |
| LTV350QV-F05 | Samsung | 3.5 | 320×240 |
| LTV350QV-F07 | Samsung | 3.5 | 320×240 |
| LTV350QV-F09 | Samsung | 3.5 | 320×240 |
| LTV350QV-F0E | Samsung | 3.5 | 320×240 |
| TMT035DNAFWU19 | Tianma | 3.5 | 320×240 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
| 990000270 | TPO | 2.5 | 320×240 |
| A024CN03 V2 | AUO | 2.4 | 480×234 |
| A027DN03 V1 | AUO | 2.7 | 320×240 |
| A030DN01 V9 | AUO | 3.0 | 320×240 |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| LQ027A3DA01 | SHARP | 2.7 | 320×240 |
| LS025A8DZ01S | SHARP | 2.5 | 320×240 |
| TM027CDH04 | Tianma | 2.7 | 320×240 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
