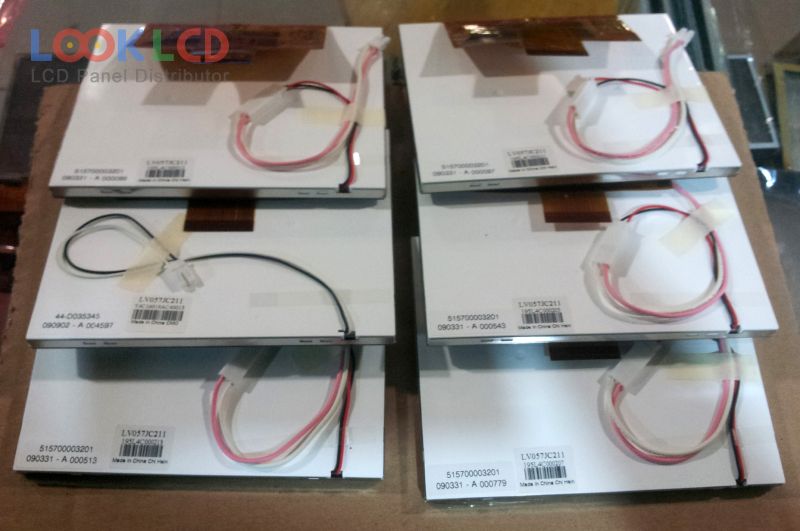

| PartNumber | LV057JC111 |
| Značka | Innolux |
| Velikost | 5.7 |
| aplikace | GM |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 350:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | ChiHsin |
| panelový model | LV057JC111 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 115.2×86.4 mm |
| obrys | 125×98.8×5.84 mm |
| povrch | Antiglare (Haze 25%), Hard coating |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193150% |
| Doba odezvy | 15/35 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/60/45 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 7S3PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) + SPI, 50 pins |
| vstupní napětí | 3.3/8.4/15.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | GM |
