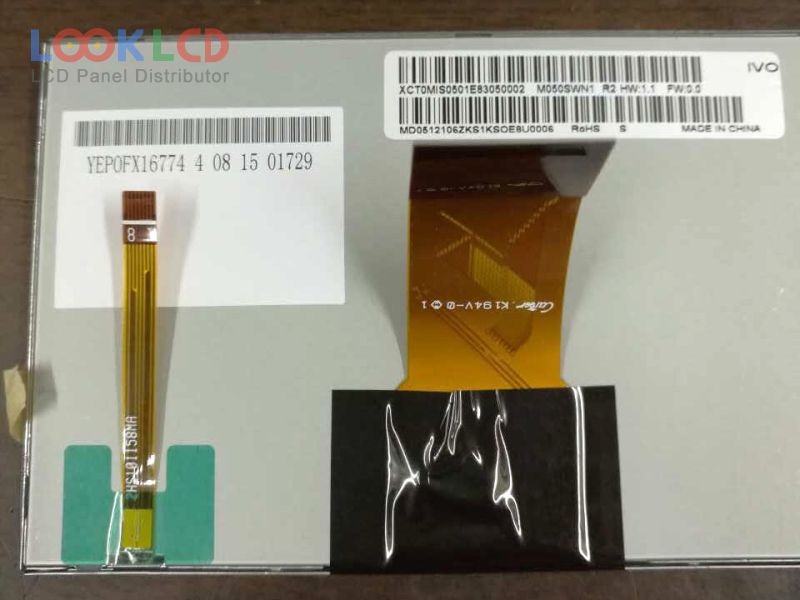

| PartNumber | M050SWN1 R2 |
| Značka | IVO |
| Velikost | 5.0 |
| aplikace | CNS |
| Rozlišení | 480×234 |
| Složení | LCM |
| Jas | 585 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | IVO |
| panelový model | M050SWN1 R2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.0 inch |
| rozlišení | 480(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 110.88×62.478 mm |
| obrys | 124×74.5×7.3 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 585 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193160% |
| Doba odezvy | 15 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S2PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | CNS |
| A050VVN01.0 | AUO | 5.0 | 480×800 |
| BTL507212-W749L | BOE | 5.0 | 720×1280 |
| EE050NA-04A | Innolux | 5.0 | 640×480 |
| LMS500HF13-002 | Samsung | 5.0 | 480×272 |
| LT050CA41000 | JDI | 5.0 | 800×480 |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| M050SWN1 R2 | IVO | 5.0 | 480×234 |
| PA050DT2 | E Ink | 5.0 | 320×234 |
| PA050XSG | E Ink | 5.0 | 320×234 |
| TM050QDH01 | Tianma | 5.0 | 640×480 |
| AT062TN12 | Innolux | 6.2 | |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA102NA01CW | CPT | 10.2 | 1024×600 |
| L5F30369P01 | SANYO | 6.5 | 800×480 |
| L5F30818P04 | SONY | 6.5 | 800×480 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LQ038Q5DR01 | SHARP | 3.8 | 320×240 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LQ6BW51N | SHARP | 5.8 | 480×234 |
| LQ6BW558T | SHARP | 5.8 | 480×234 |
