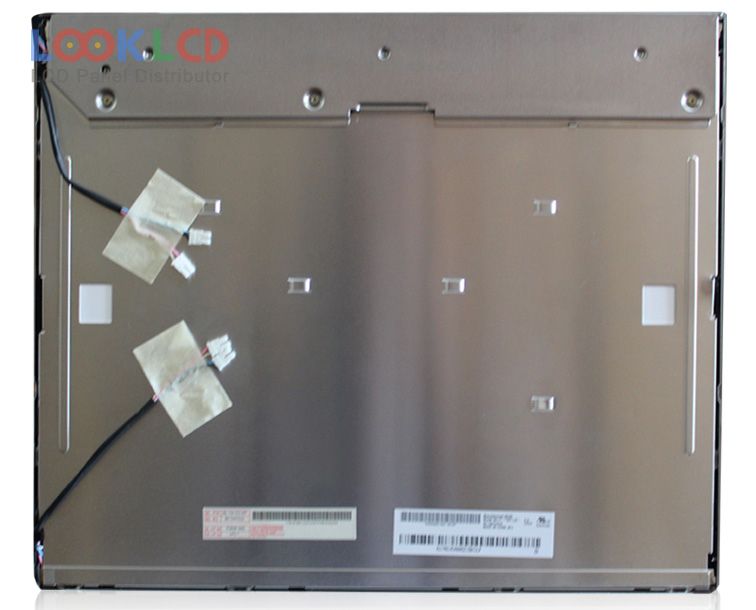

| PartNumber | M170EG01 V5 |
| Značka | AUO |
| Velikost | 17.0 |
| aplikace | DMPC |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 260 |
| CR | 450:1 |
| Barvy | 16.2M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | M170EG01 V5 2 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 337.92×270.336 mm |
| obrys | 358.5×296.5×17.5 mm |
| povrch | |
| jas | 260 cd/m² (Typ.) |
| kontrastní poměr | 450:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC), CIE193172% |
| Doba odezvy | 12/4 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| M170E5-L09 | Innolux | 17.0 | 1280×1024 |
| M170E8-L01 | Innolux | 17.0 | 1280×1024 |
| M170EG01 VA | AUO | 17.0 | 1280×1024 |
| M170EG01 VD | AUO | 17.0 | 1280×1024 |
| M170EG01 VH | AUO | 17.0 | 1280×1024 |
| M170EG02 V3 | AUO | 17.0 | 1280×1024 |
| M170EP01 V0 | AUO | 17.0 | 1280×1024 |
| M170EP01 V2 | AUO | 17.0 | 1280×1024 |
| M170ETN01.0 | AUO | 17.0 | 1280×1024 |
| M170EU01 V0 | AUO | 17.0 | 1280×1024 |
| LM151X3-C3C1 | LG Display | 15.1 | 1024×768 |
| LM215WF4-TLA3 | LG Display | 21.5 | 1920×1080 |
| LM230WF3-SLQ1 | LG Display | 23.0 | 1920×1080 |
| LM340UW2-SSA1 | LG Display | 34 | 3440×1440 |
| LTM240CL01 | Samsung | 24.0 | 1920×1200 |
| LTM300M1-P02 | Samsung | 30.0 | 2560×1600 |
| LTM340YP01 | Samsung | 34 | 3440×1440 |
| M215HTN01.0 | AUO | 21.5 | 1920×1080 |
| M215HW03 V1Q0 | AUO | 21.5 | 1920×1080 |
| MV238QUM-N20 | BOE | 23.8 | 3840×2160 |
