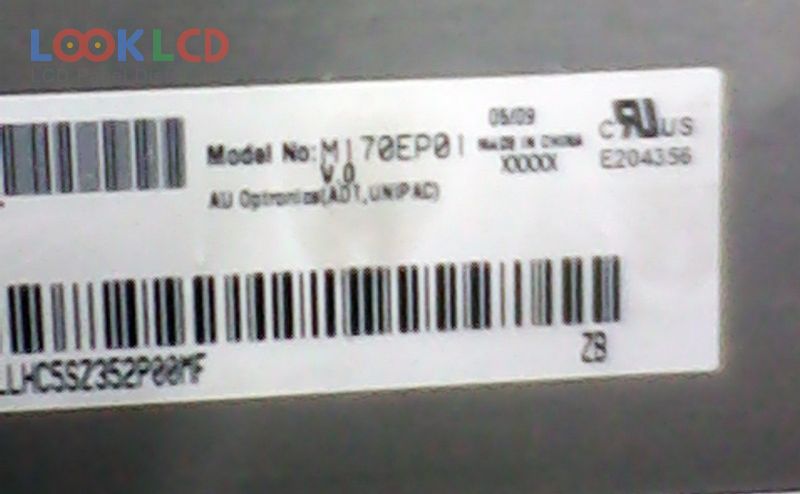

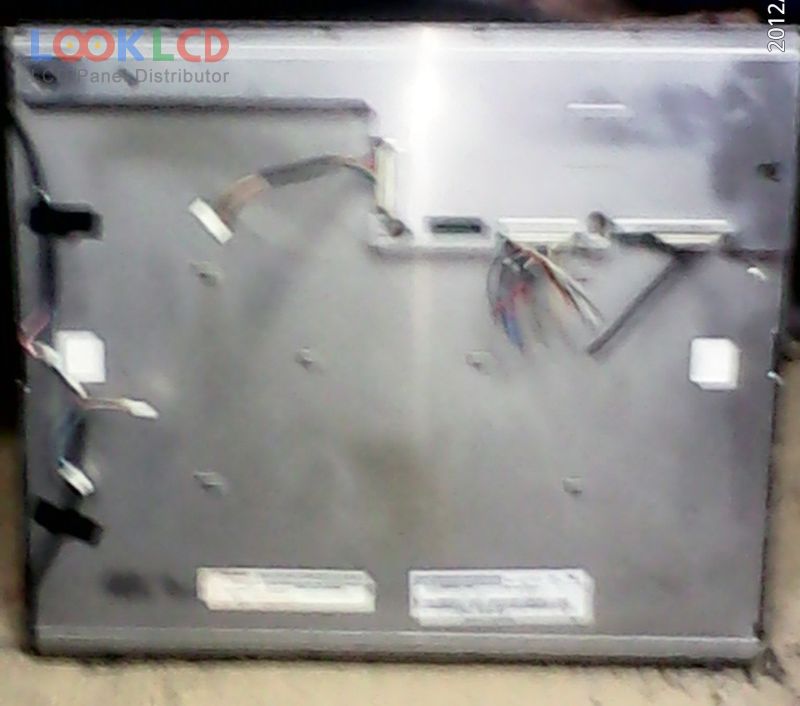

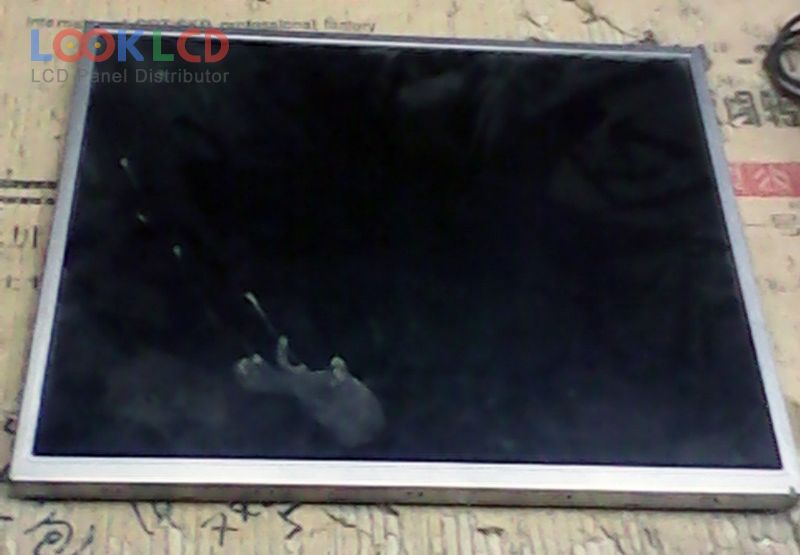

| PartNumber | M170EP01 V0 |
| Značka | AUO |
| Velikost | 17.0 |
| aplikace | DMPC |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 260 |
| CR | 450:1 |
| Barvy | 16.2M |
| Podsvícení | CCFL |
| Rozhraní | Analog + Digital |
| značka panelu | AUO |
| panelový model | M170EP01 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 337.92×270.336 mm |
| obrys | 358.5×296.5×20.5 mm |
| povrch | |
| jas | 260 cd/m² (Typ.) |
| kontrastní poměr | 450:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 4/12 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | Analog RGB + DVI-D, 69 pins |
| vstupní napětí | 5.1V (Typ.) |
| aplikace | DMPC |
