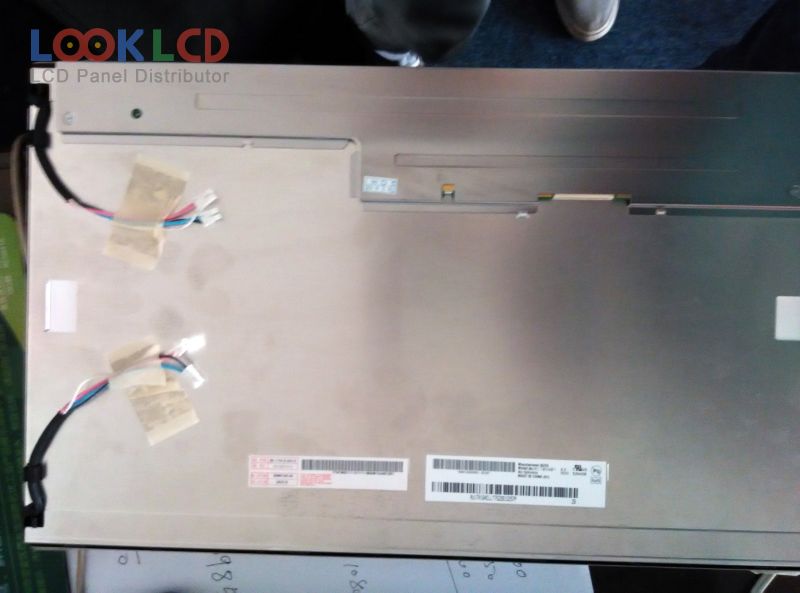

| PartNumber | M170XW01 V3 |
| Značka | AUO |
| Velikost | 17.0 |
| aplikace | DMPC |
| Rozlišení | 1280×768 |
| Složení | LCM |
| Jas | 450 |
| CR | 800:1 |
| Barvy | 16.2M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | M170XW01 V3 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.0 inch |
| rozlišení | 1280(RGB)×768 , WXGA |
| zobrazovací mód | MVA, Normally Black, Transmissive |
| aktivní oblast | 370.56×222.336 mm |
| obrys | 404×248.5×17.8 mm |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 15/10 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| LM170E01-A6 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLBF | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLB1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ2 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLL2 | LG Display | 17.0 | 1280×1024 |
| LTN170BT07-G01 | Samsung | 17.0 | 1440×900 |
| LTN170U1-L02 | Samsung | 17.0 | 1920×1200 |
| M170EG01 V0 | AUO | 17.0 | 1280×1024 |
| M170XW01 V3 | AUO | 17.0 | 1280×768 |
| HR236WU3-301 | BOE | 23.6 | 1920×1080 |
| HT170EX1-101 | BOE | 17.0 | 1280×1024 |
| LM201W01-STB1 | LG Display | 20.1 | 1680×1050 |
| LM270WF5-SLA1 | LG Display | 27.0 | 1920×1080 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| M215HTN01.0 | AUO | 21.5 | 1920×1080 |
| M220Z3-LA3 | Innolux | 22.0 | 1680×1050 |
| M300DVR01.1 | AUO | 30.0 | 2560×1080 |
| MT190AW02 V.4 | Innolux | 19.0 | 1440×900 |
| NL12876AC39-01 | NLT | 23.0 | 1280×768 |
