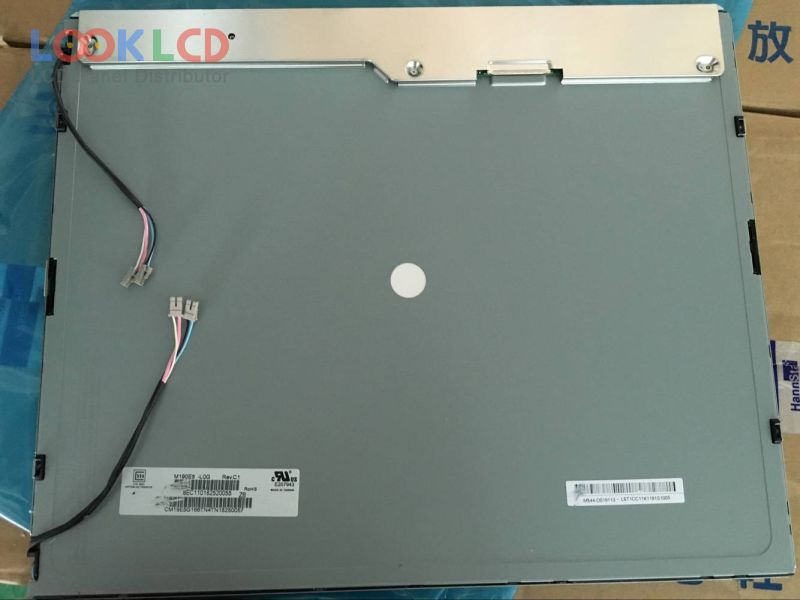

| PartNumber | M190E5-L0G |
| Značka | Innolux |
| Velikost | 19.0 |
| aplikace | DMPC |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 270 |
| CR | 700:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | CMO |
| panelový model | M190E5-L0G |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 19.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 376.32×301.056 mm |
| obrys | 396×324×17 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 270 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193190% |
| Doba odezvy | 1.3/3.7 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| M190E5-L0G | Innolux | 19.0 | 1280×1024 |
| M190EG01 V2 | AUO | 19.0 | 1280×1024 |
| M190EG01 V3 | AUO | 19.0 | 1280×1024 |
| M190EG02 V4 | AUO | 19.0 | 1280×1024 |
| M190EN01 V1 | AUO | 19.0 | 1280×1024 |
| M190EN03 V0 | AUO | 19.0 | 1280×1024 |
| M190EN03 V2 | AUO | 19.0 | 1280×1024 |
| M190EN04 V1 | AUO | 19.0 | 1280×1024 |
| M190EN04 V5 | AUO | 19.0 | 1280×1024 |
| M190ETN01.0 | AUO | 19.0 | 1280×1024 |
| LM190WX1-TLL1 | LG Display | 19.0 | 1440×900 |
| LM201U04-A3 | LG Display | 20.1 | 1600×1200 |
| LM215WF3-SLA2 | LG Display | 21.5 | 1920×1080 |
| LM215WF4-TLE7 | LG Display | 21.5 | 1920×1080 |
| LTM181E4-L01 | Samsung | 18.1 | 1280×1024 |
| LTM220MT09 | Samsung | 22.0 | 1680×1050 |
| M170E5-L08 | Innolux | 17.0 | 1280×1024 |
| M170EG02 V3 | AUO | 17.0 | 1280×1024 |
| M236MWF1 R0 | IVO | 23.6 | 1920×1080 |
| SVA150XG04TB | SVA-NEC | 15.0 | 1024×768 |
