| PartNumber | M236H1-L07 |
| Značka | Innolux |
| Velikost | 23.6 |
| aplikace | DMPC |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 250 |
| CR | 1200:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | CMO |
| panelový model | M236H1-L07 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 23.6 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 521.28×293.22 mm |
| obrys | 544.8×320.5 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1200:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odezvy | 0.7/2.3 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |

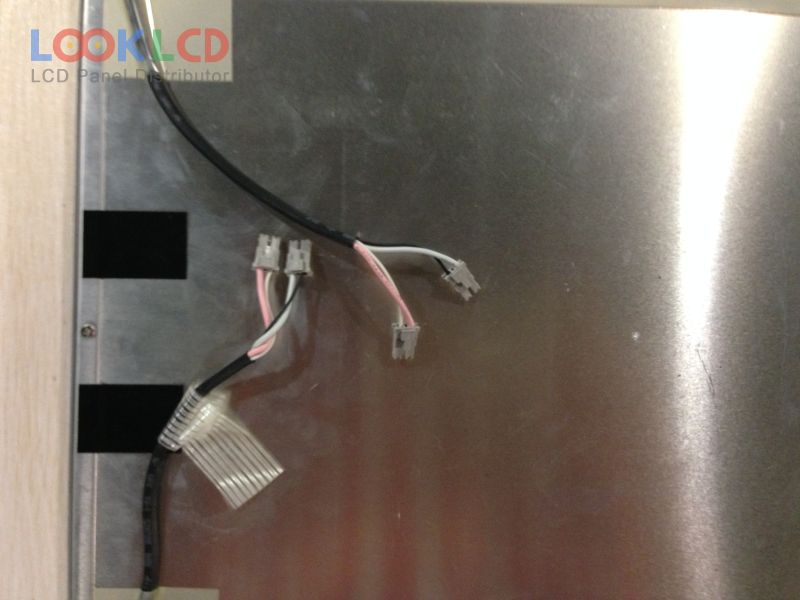

| typ lampy | 2 pcsCCFLWithout Driver |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
